Page 2 Solar Power Kit for Wireless Vantage Pro
Securing the Power Cable
Secure the power cable to prepare the Solar Power Kit for installation.
1. Determine how much of
the 20’ (6 m) power cable is
needed to reach your Wire-
less Vantage Pro console.
2. Pull that length of cable
through the rubber grom-
met located in the bottom
of the shelter.
3. Secure the cable inside the
shelter with a 4” Cable Tie
fastened to the cable tie
mount.
The cable tie provides
strain relief for the power
cable.
Mounting the Solar Power Kit on a Pole
The U-bolts included with the Solar Power Kit fit poles from 3/4” to 1 1/4”
(19mm to 31mm) in diameter.
1. While holding the shel-
ter against the pole, place
a U-bolt around the pole
and through the two
holes at the top of the
shelter.
2. Place a flat washer, a lock
washer and a hex nut on
each of the bolt ends.
3. Tighten the nuts using an
adjustable wrench or 7/
16” wrench, .
4. Place the second U-bolt
around the pole and
through the two holes at the bottom of the shelter.
Put a flat washer, a lock washer, and a hex nut on each bolt end, and
tighten the hex nuts.
Power Cable
Battery
Secure Cable
Using
Cable Tie Mount
Grommet

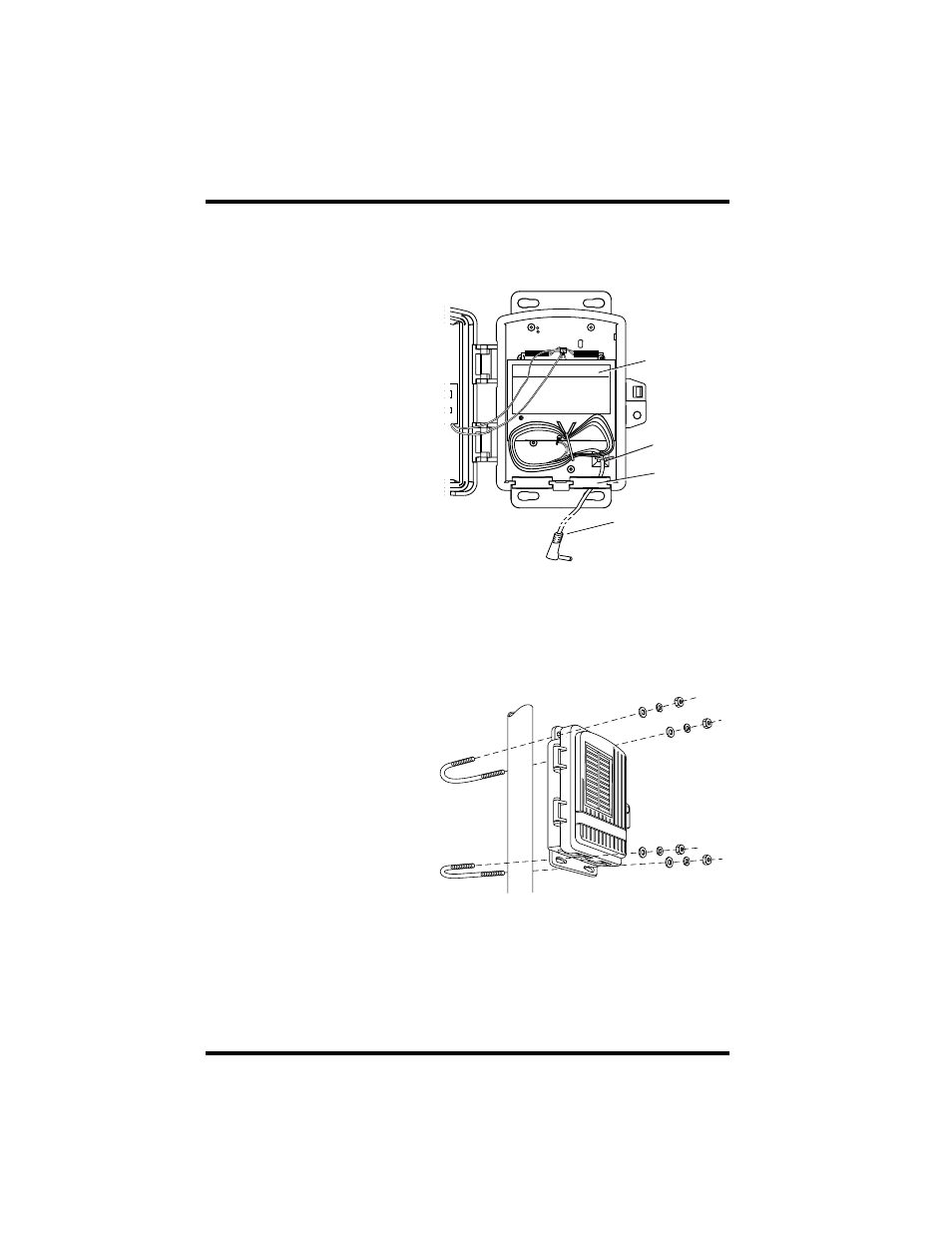

Securing the Power Cable
Flat
Washer
Lock
Washer
Hex
Nut
U-Bolt
Mounting Solar Power Kit on a Pole
