C ONNECTING THE L INK I SOLATOR U NIT
The isolator unit provides must be connected between the WeatherLink and
the PC as shown below. When connecting the isolator unit, make sure it is
placed indoors and is located within 12’ (3.6 m) of a power outlet.
You may not use any extension cables with the isolator unit , meaning that the
WeatherLink must be within 48’ of the PC. Connect the cable coming from the
WeatherLink to the jack marked L1 (To Link) on the isolator unit. Connect one
end of the 40-foot (12 m) WeatherLink cable to the jack marked L2 (To PC) on
the isolator unit. Connect end of the 40-foot (12 m) WeatherLink cable to the PC
COM Port adapter and to your PC (the adapter is supplied with the Weather-
Link).

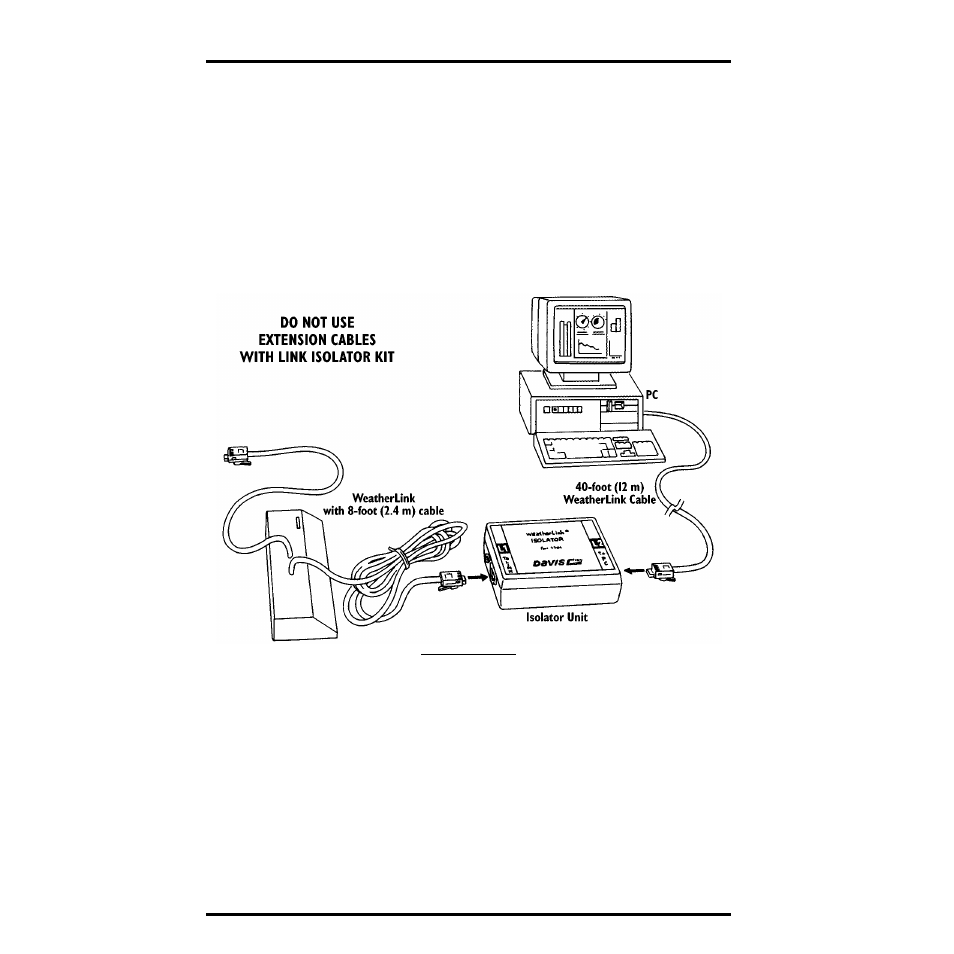

C ABLE C ONNECTIONS
