Page 2 Splice Connectors
C ONNECTING C ABLES

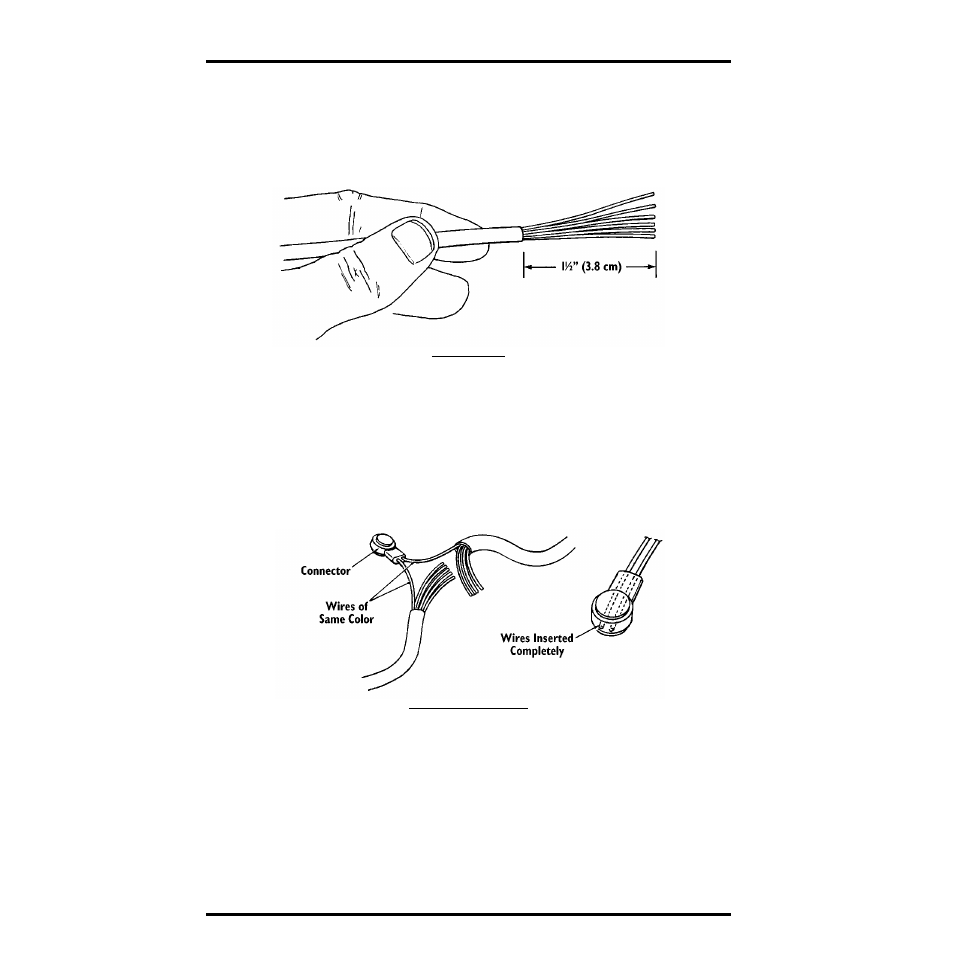

1. Use a wire stripper or a knife to strip away about 1
∫
(3.8 cm) inches of the jacket (the
outer covering) and shield (the foil-like inner covering on shielded cables) of the cable.
Do not strip away any of the colored insulation on the individual wires.
Repeat this procedure for the end of each cable you are connecting.
S TRIP S HIELDING
2. Take a wire from one of the cables and place it into one of the holes at the end of a
splice connector.
Make sure you push the wire all the way in. You can check this by looking
through the clear side of the splice connector.
3. Take the same colored wire from the other cable and place it into the other hole at the
end of the splice connector.
Make sure you push the wire all the way in. You can check this by looking
through the clear side of the splice connector.
U SING S PLICE C ONNECTOR
4. Use pliers to snap the yellow cap into place, securing the wires.
5. Repeat this procedure for each set of colored wires and the bare drain wires.
