Decoder box, control module, or sensor – Lokar LED Dash Indicator Bezel User Manual
Page 2
INS0019 Rev. 04/18/14
Page 2
© 2013 Lokar, Inc.

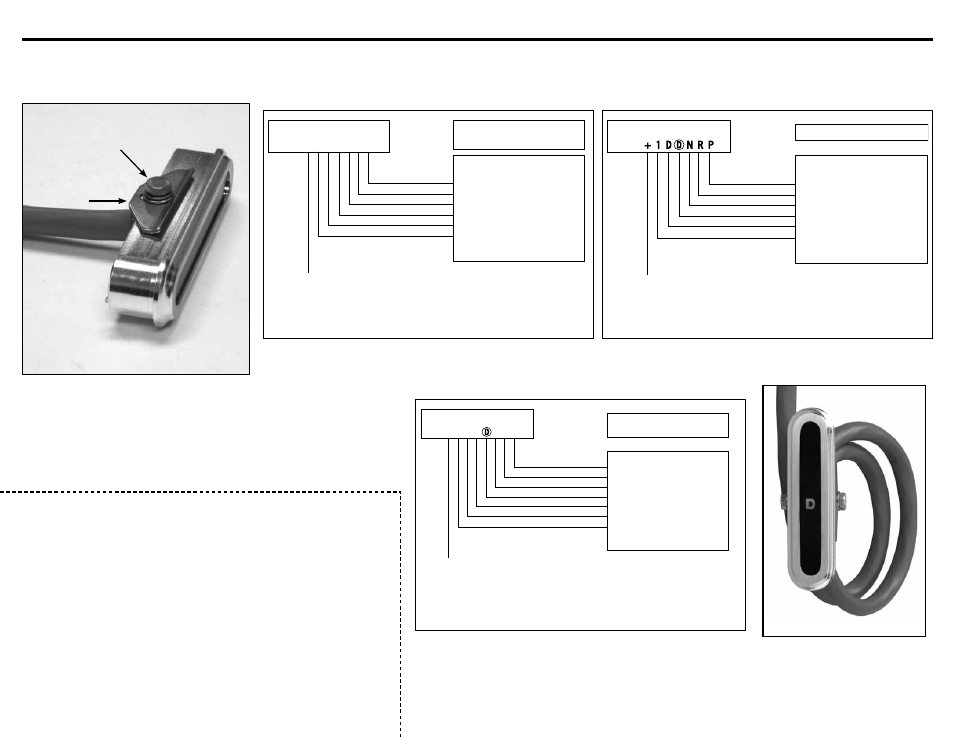

LED Dash Indicator Bezel Installation Instructions
DASH INDICATOR
+ 1 2 D N R P
Purple
Yellow
Blue
Brown
Orange
White
Decoder Box,
Control Module,
or Sensor
12 VOLTS FROM
IGNITION SWITCH ‘ON’.
DO NOT CONNECT TO
ACC. CONNECTION.
Red
For: GM TH200, TH350, TH400
Ford C4, C6
Chrysler 518, 727, 904
DASH INDICATOR
Purple
Yellow
Blue
Brown
Orange
White
12 VOLTS FROM
IGNITION SWITCH ‘ON’.
DO NOT CONNECT TO
ACC. CONNECTION.
Decoder Box,
Control Module,
or Sensor
Red
For: Ford AOD, AODE, 4R70W
DASH INDICATOR
+ 1 2 D N R P
Purple
Yellow
Blue
Brown
Orange
White
Green
12 VOLTS FROM
IGNITION SWITCH.
DO NOT CONNECT TO
ACC. CONNECTION.
Decoder Box,
Control Module,
or Sensor
Red
For: GM 200-4R, 700-R4, 4L60,
4L60E, 4L80E
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 3
#6-32 x 1/4" Bolt With
Internal Star Washer
and Flat Washer
Dash Bracket
