2

Note: Diagram

not to scale

.395

.945

1.525

2.075

2.356

1.000”

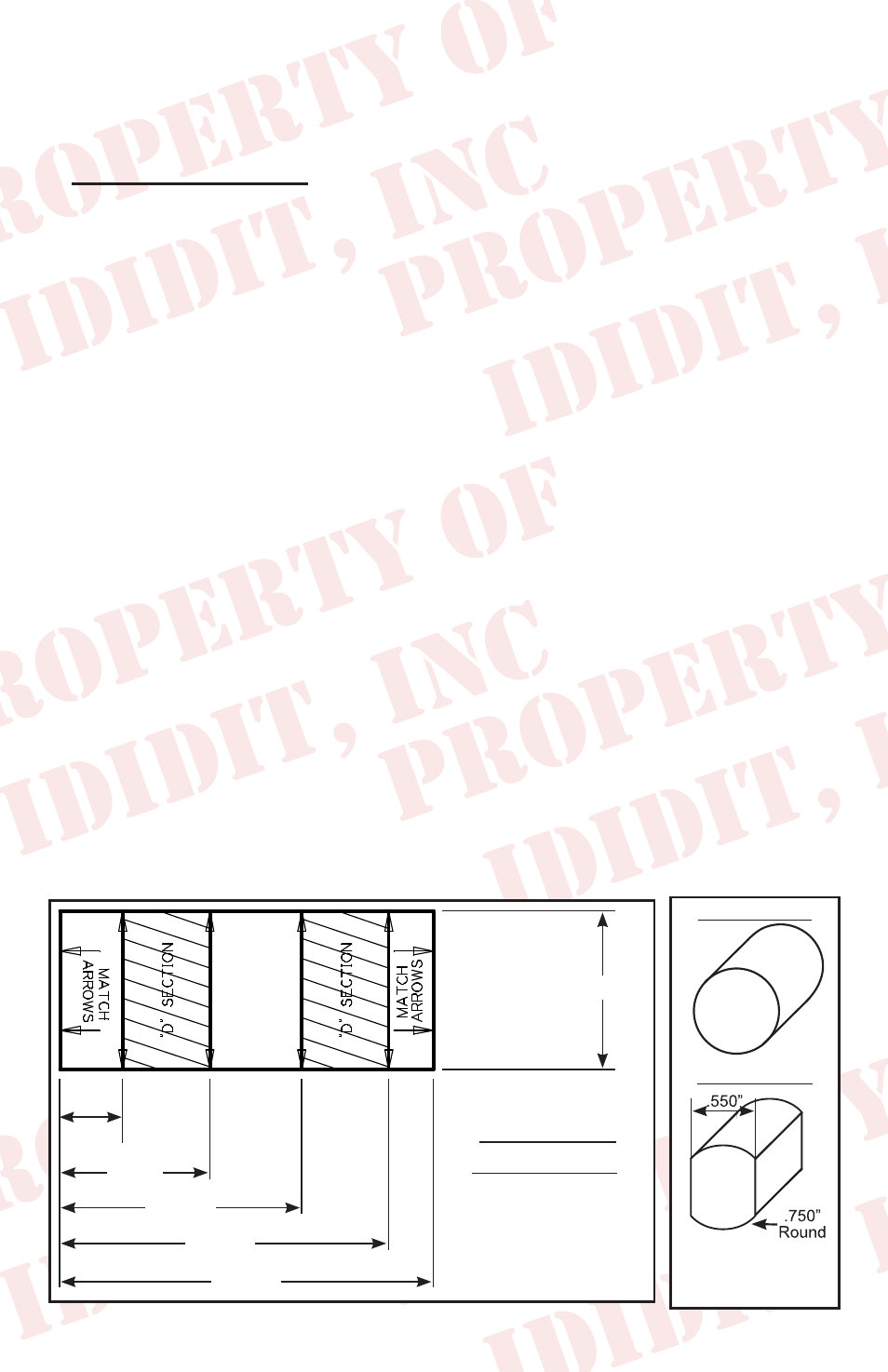

DD SHAFT

TEMPLATE

To make 3/4 DD shaft

remove .100” from opposite

sides of the shaft

Original Shaft

New DD Shaft

2

dash area. The tube will completely come off the shaft from the

inside of the vehicle. You may have to rotate the tube to clear the

firewall if column shift.

Gear box removal:

If switching to Rack & Pinion System:
Raise the front of the car with jack stands. Jack the car up about 1

foot; unbolt and remove the pitman arm. Unbolt the gearbox from

the frame. Unbolt the driver’s side motor mount from the frame

and jack the motor up just enough to slide the gearbox out. Once

the gearbox is removed the motor mount can be re-attached.

(If

already using a Rack & Pinion system move on to pg 5)

If keeping the Stock Box:
Measure down from the dash mount locating tab and mark the

shaft at 21.5 inches. Then raise the front of the car on jack

stands about 1 foot. Un-bolt the pitman arm from the gearbox

and remove it. Unbolt the gearbox from the frame. You will have

to support the motor and unbolt the driver’s side motor mount

from the frame. Jack the motor just high enough to remove the

box. Once the box is removed the motor mount can then be

re-attached.

Gear box modifications:

The shaft of the gear box must now be cut to length and modified

to accept the DD Coupler. This is a round shaft with flats centered

on two sides. An easy way to do this is to make a paper template.
