12. Attach bracket #56405 on top of bracket #56403 and into upper cross frame on passenger’s side. You
will need to remove, and then reinstall a bolt previously installed in step #4. The “Z” shaped air ducting
is to be supported by this bracket.
Note: Disregard bracket installation if your intake manifold’s air
ducting is routed differently. (see detail 11)
13. Suggestions for securing A/C hoses to radiator bracket #56405:
a. If your intake manifold has the “Z” shaped air ducting, secure to underside of bracket #56405
with zip ties. (not included)
b. If your intake manifolds air ducting doesn’t take advantage of bracket #56405, rout the A/C
hoses atop the bracket and secure with zip ties. (not included)
14. Reattach flexible air duct to intake manifold. Be sure to also reattach integrated tube leading to passen-
gers side valve cover.
15. Reattach “Z” shaped air ducting between air filter canister and flexible air duct. Note: If your vehicle
comes equipped with a strait forward or other air ducting configuration, reattach it instead.
16. Reattach negative (-) battery cable to battery.
17. Fill radiator/ cooling system with vehicle manufacturer recommended coolant. Remember to fill reser-
voir to “cold fill level” if needed.
Note: BE SURE that all moving parts of the engine and electrical fan assembly are clear of each other
before proceeding!
07-01-08 #99400 Page 3 of 3
The Flex-a-lite Limited Warranty
Flex-a-lite Consolidated, 7213-45th St. Ct. E. Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite
products to be free of defects in material and workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within
365 days (1 year) from date of purchase may be returned to the factory through the point of purchase, transportation charges prepaid. If, on inspection,
cause of failure is determined to be defective material or workmanship and not by misuse, accidental or improper installation, Flex-a-lite will replace the
product free of charge, transportation prepaid. Flex-a-lite will not be liable for incidental, progressive or consequential damages. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty
gives you specific legal rights and you may have other rights, which vary from state to state. The Flex-a-lite warranty in in compliance with the
Magnuson-Moss Warranty Act of 1975.

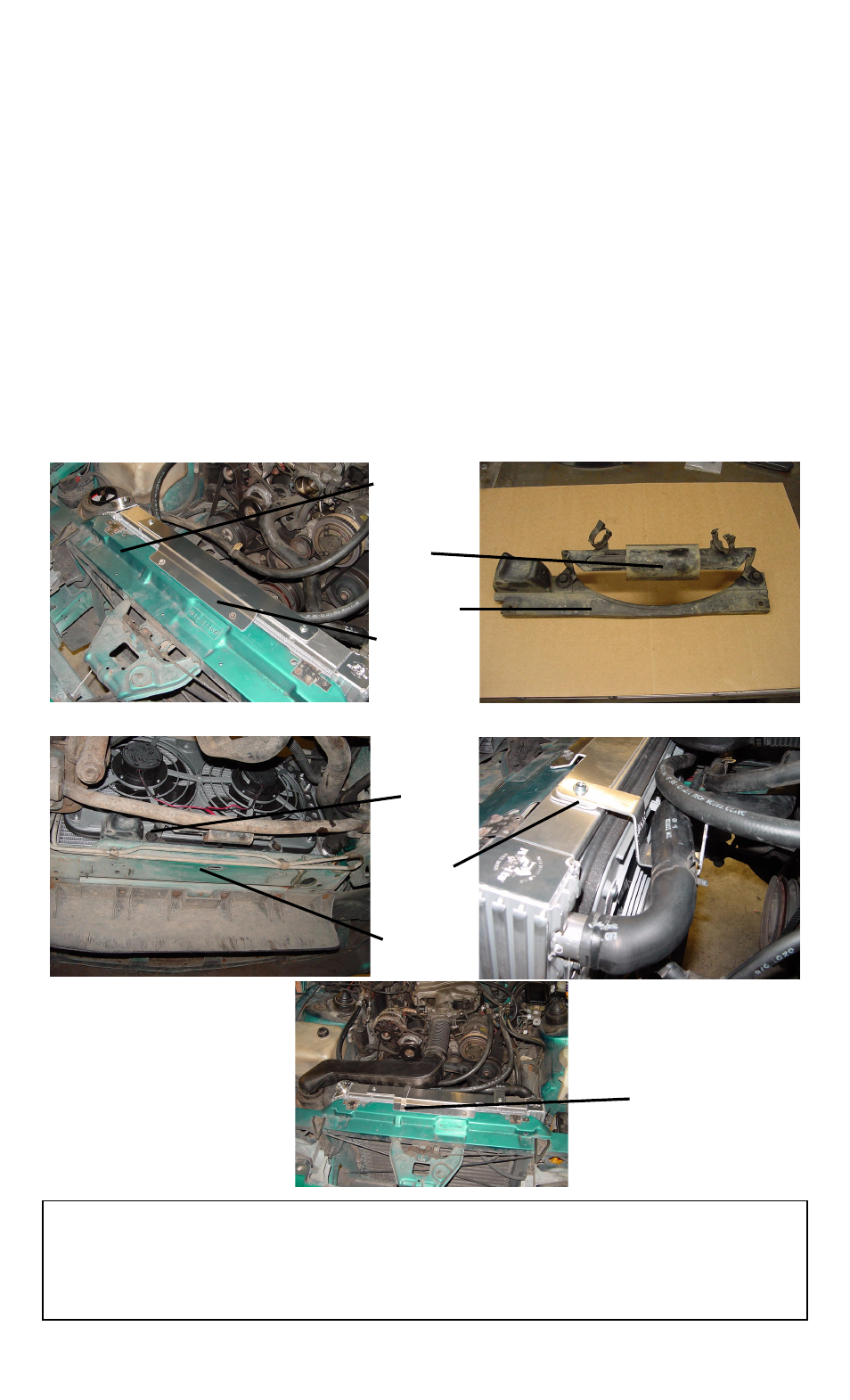

(Detail 11)
Bracket
#56405 shown
mounted
(Detail 7)
Upper cross
member
Bracket
#56403 shown
mounted
Metal support
bracket
Plastic bottom
fan bracket
(Detail 8)
(Detail 9) (Detail 10)
Plastic/metal
bracket
assembly
Lower cross
member
Bracket
#56404 shown
mounted
