Rear cradle bushings bk002 (continued) – BMR Suspension BK002 User Manual
Page 2
Rear Cradle Bushings
BK002 (Continued)
6.
Using a 15mm socket, remove the 4 front flange bolts on the exhaust (2 per side). See Image 5 on
previous page.
7.

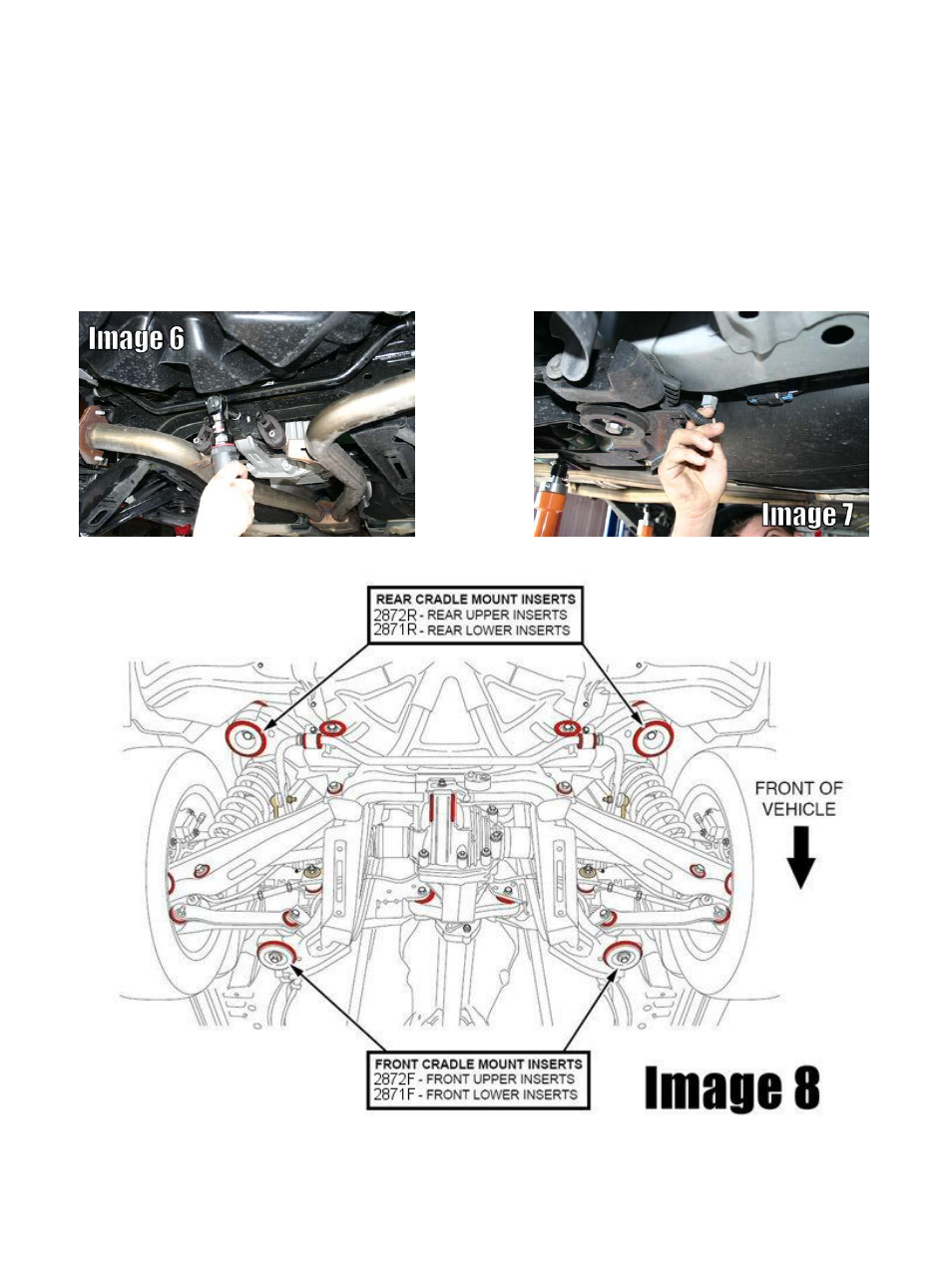

Remove center 15mm exhaust hanger bolt in rear. See Image 6.
8.
Using a helper, remove the entire exhaust assembly.
9.
Un-plug the fuel pump wiring harness located on the passenger side of the car next to the front cradle
bushing. See Image 7 above.
10.
Support the cradle with a hydraulic jack or adjustable frame stands.
11.
Using a 21mm socket, remove the (4) cradle mounting bolts as shown in Image 8.
2
