BMR Suspension BK024 User Manual
Page 3
Rear Subframe Bushings
BK024 (Continued)
11. Using an 18mm wrench and socket, remove the 3 bolts that connect the driveshaft flex joint to the
differential. NOTE: Remove the appropriate bolts
so that the rubber flex joint remains attached to
the driveshaft, NOT the differential. Using a pry-
bar, pry the joint off the alignment dowel
allowing the shaft to hang out of the way. (Image
9 on previous page).
12. Support the rear subframe with a hydraulic jack.

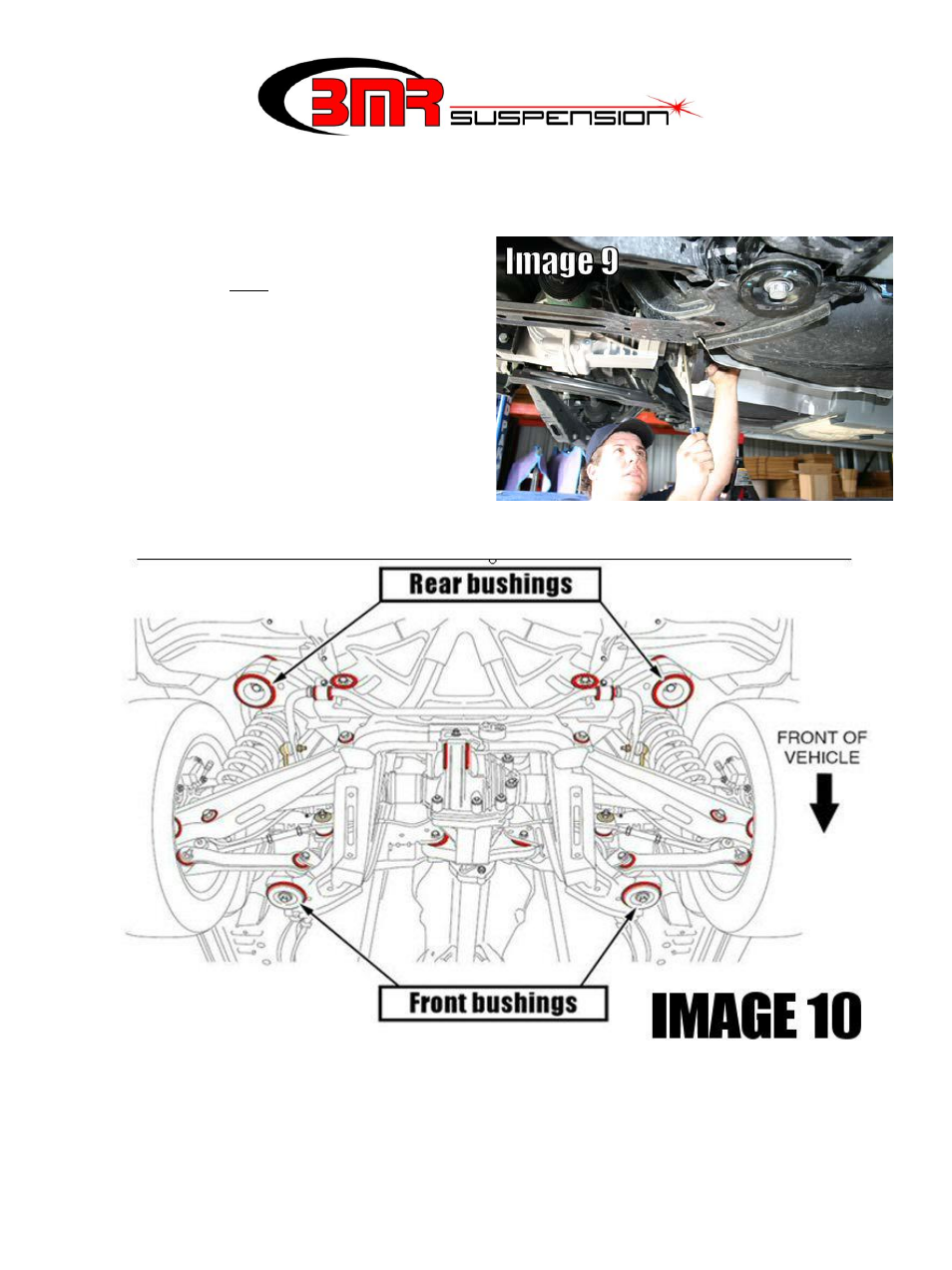

13. Using Image 10 below as a reference, remove the
(4) subframe mounting bolts using a 21mm
socket.
14. Lower the rear subframe.
15. The simplest way to remove the OE bushings is
to cut the tops of the bushings off flush with the
top of the subframe then drive the bushings out
using a large hammer.
16.
Once the bushings are removed, insert the BMR polyurethane bushings with the larger bushing on top.
Lube the center holes with the provided grease and insert the center steel sleeves.
Continued
