Valve manifold assembly – AirSep MN138-1 H User Manual
Page 46
MN138-1 Rev H
02/14
ITEM
PART
NUMBER
DESCRIPTION
ITEM
PART
NUMBER
DESCRIPTION
1
F0037-4
FITTING, BRASS, MULTIBARB, FEED / WASTE
10
OR022-1
O-RING, MOUNTING BOLT
2
F0134-1
FITTING, COMPRESSION, 5/16”
11
SC118-1
SCREW, MOUNTING BOLT
3
F0494-1
FITTING, BRASS
12
TU165-104
TUBING, BRAIDED SILICONE
4
F0517-1
FITTING, BRASS, EQ
13
TU152-070
TUBING, PRESSURE PORT
5
F0645-1
FITTING, SWIVEL HOSE BARB
14
TU180-064
TUBING, EXHAUST
6
FO147-1
FOAM, FEED, FITTING
15
TW001-4
TIE WRAP, 4”
7
FO148-1
FOAM, EXHAUST, FITTING
16
TW016-1
TIE WRAP, 4.88” LG
8
HA064-1
HARDWARE, COIL, ECLIP
17
TW011-2
TIE WRAP, 2.83” LG
9
MA198-1
MANIFOLD, VALVE BLOCK
18
VA374-1
VALVE, COIL

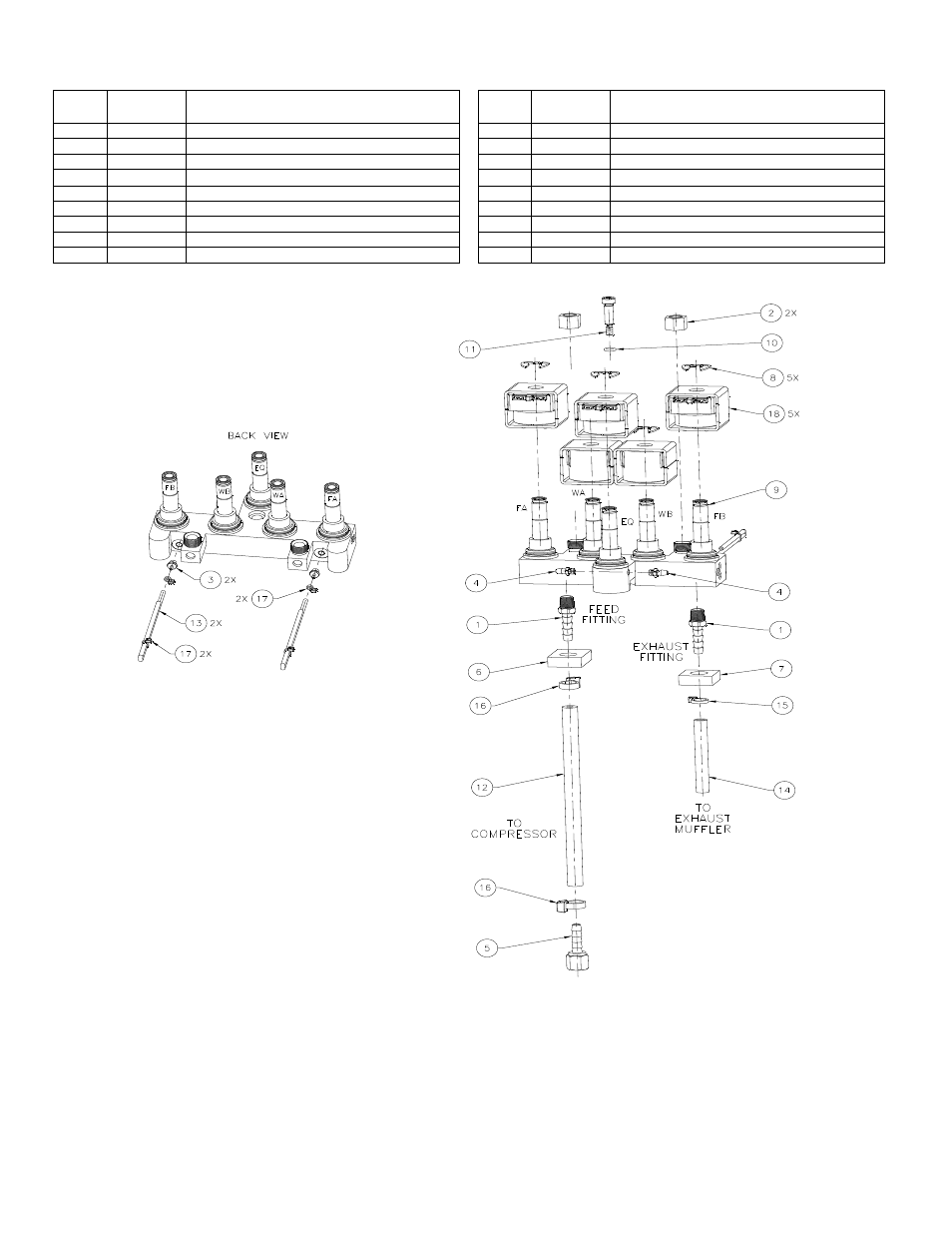

VALVE MANIFOLD ASSEMBLY
H
