AirSep MN138-1 H - Manual (Page 42)

MN138-1 Rev H
02/14
ITEM PART
NUMBER
DESCRIPTION ITEM PART
NUMBER
DESCRIPTION
1 CA262-1 CABINET, MOUNTING PLATE, SWITCH 15 F0724-1 FITTING, AIR OUTLET
2 CA263-1 CABINET, MOUNTING PLATE, FLOWMETER 16 FA038-1 FASTENER, RUBBER KEEPER
3 CA265-2 CABINET, BACK PANEL ASSY 17 FM033-2 FLOWMETER, 1/4 FITTING
4 CA268-1 CABINET, ROLLER BASE (ONLY) 18 FM067-1 FLOWMETER, 1/8 FITTING
5 CA271-1 CABINET, COMPRESSOR COVER 19 FM070-1 FLOWMETER, 2 LPM
6 CA283-1 CABINET, CENTER SECTION 20 FM073-1 FLOWMETER, (VISIONAIRE 3)
7 CA280-1 CABINET, FRONT PANEL ASSY 21 HM009-2 HOUR METER
8 CA280-2 CABINET, FRONT PANEL ASSY, W/O2 MONITOR 22 LA360-1 LABEL, AIR OUTLET
9 CA285-1 CABINET, FRONT PANEL ASSY (VISIONAIRE 3) 23 MI268-1 HUMIDIFIER STRAP
10 CA285-2
CABINET, FRONT PANEL ASSY, W/ O2 MONITOR
(VISIONAIRE 3)
24 SC111-1 SCREW, 1/4 TURN
11 CA285-3
CABINET, FRONT PANEL ASSY, W/ O2 MONITOR
(VISIONAIRE 2)
25 SC112-1 SCREW, RETAINER, 1/4 TURN
12 CR001-5 CIRCUIT BREAKER, 220-240V 26 SW114-1 SWITCH, ON-OFF
13 CR001-6 CIRCUIT BREAKER, 115V 27 WA055-1 WASHER, INTERNAL LOCK, TOOTH
14 CS001-1 CASTER

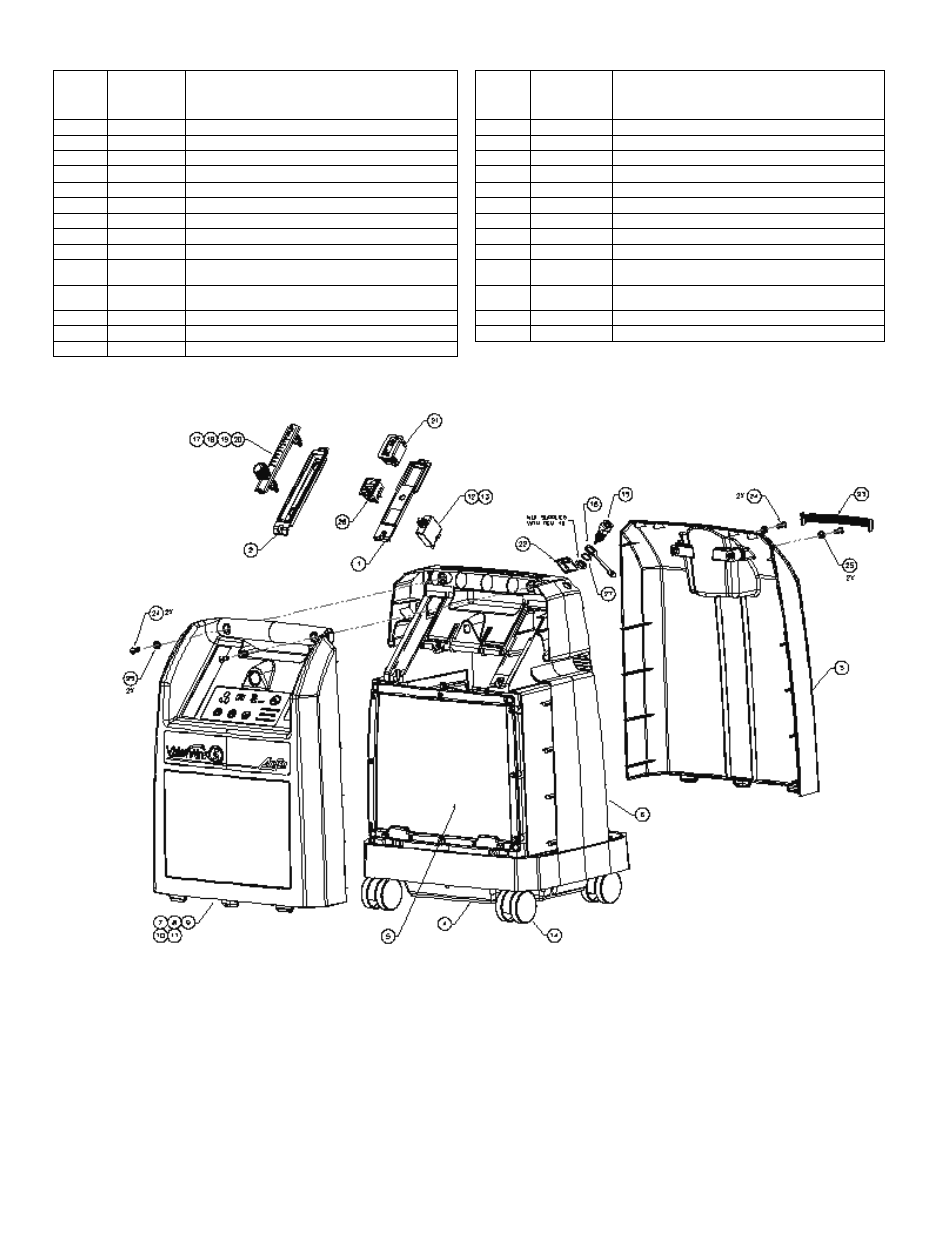

MAIN ASSEMBLY
D
