Compressor enclosure assembly f – AirSep MN138-1 H User Manual
Page 44
MN138-1 Rev H
02/14
ITEM
PART
NUMBER
DESCRIPTION
ITEM
PART
NUMBER
DESCRIPTION
1
AL018-1
ALARM, BUZZER
13
FO146-1
FOAM, FAN MOUNT
2
CA284-1
CABINET, COMPRESSOR, ENCLOSURE
14
MO025-1
MOUNT, COMPRESSOR
3
CB102-1
CIRCUIT BOARD, MAIN
15
MU043-1
MUFFLER, EXHAUST, TOP HALF
4
CB102-3
CIRCUIT BOARD, MAIN (V2, V3)
16
MU083-1
MUFFLER, CHAMBER
5
CC006-6
CAPACITOR, 220-240V
17
SC003-3
SCREW, SELFTAP, COMPRESSOR MOUNT
6
CC006-8
CAPACITOR, 120V
18
SC037-4
SCREW, SELFTAP, ALARM/CB
7
CC006-10
CAPACITOR, 230V
19
TW001-3
TIE WRAP, 4”
8
F0005-3
FITTING, MUFFLER
20
TW017-1
TIE WRAP, HEAT STAB
9
FN019-1
FAN, 115V (V2, V3)
21
TU165-104
TUBING, BRAIDED SILICONE
10
FN041-1
FAN, 115V, VISIONAIRE
22
TU180-064
TUBING, EXHAUST
11
FN046-1
FAN, 230V, VISIONAIRE
23
COMPRESSOR, ASSY
12
FN047-1
FAN, 230V (V2, V3)
24
VALVE, BLOCK, ASSY

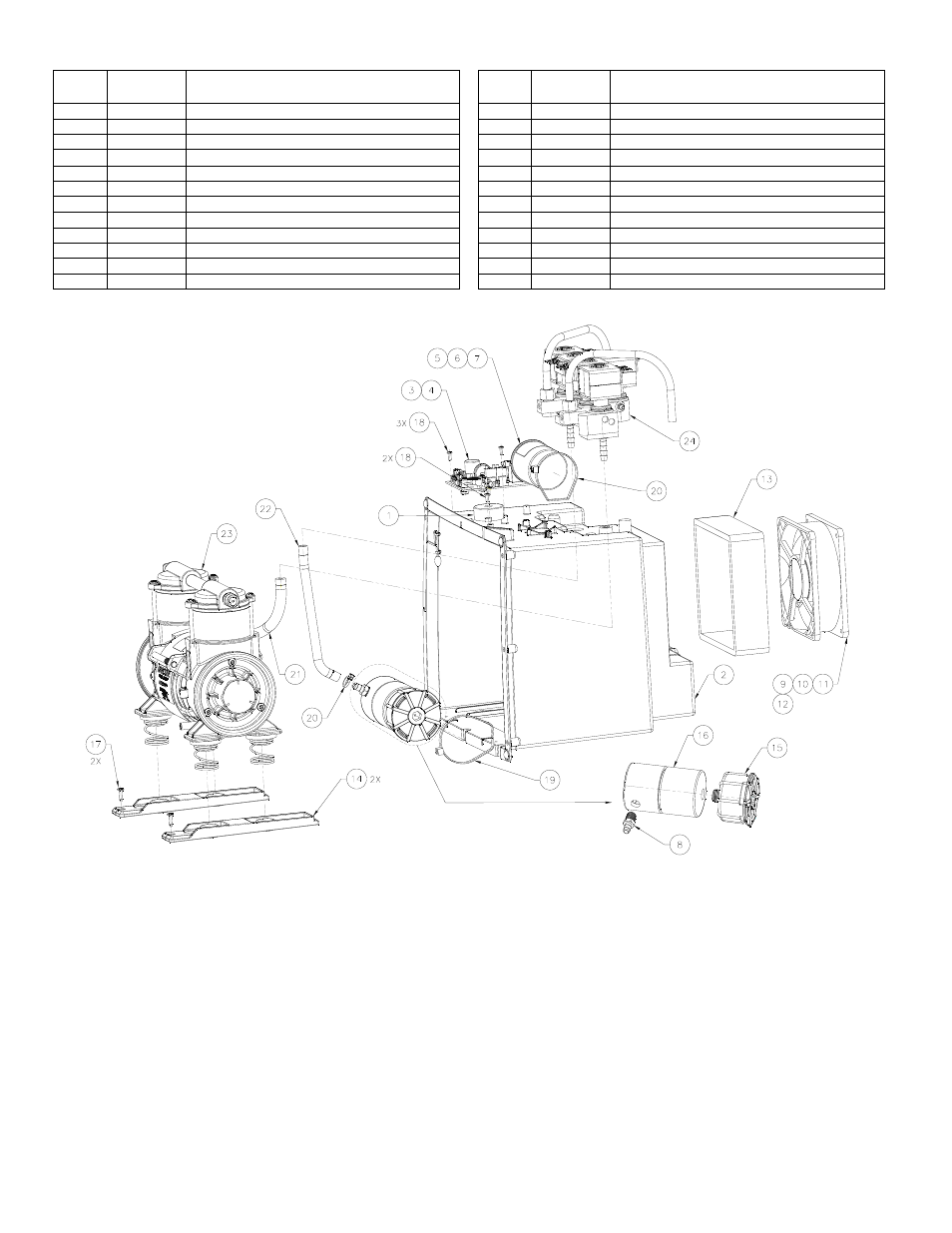

COMPRESSOR ENCLOSURE ASSEMBLY
F
