VSC operations 95

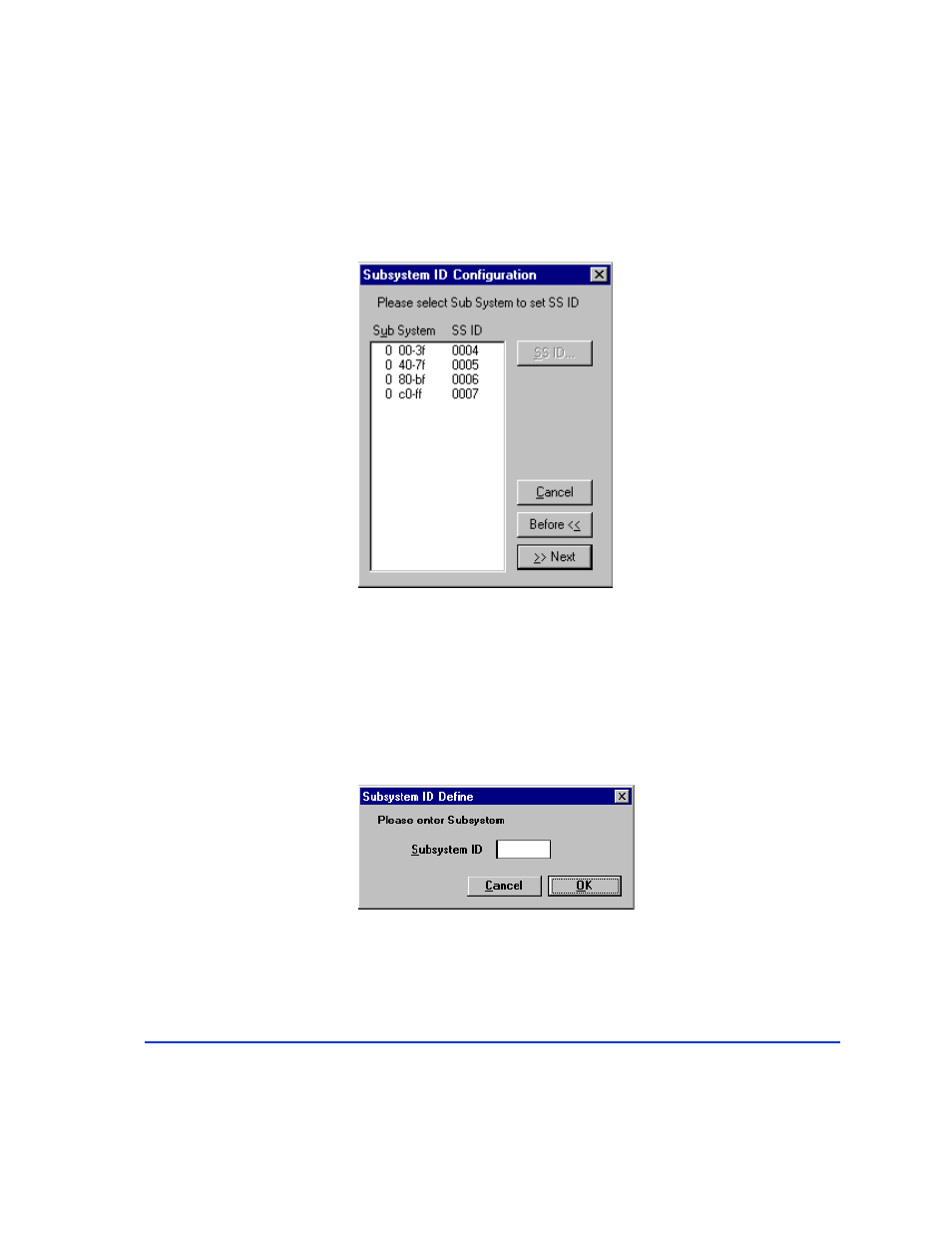

The Subsystem ID Configuration window now opens to allow you to
assign one or more SSIDs.
4. If you do not need to assign an SSID, go to step 8.
5. To assign an SSID to a disk array, select the desired disk array and select
the SSID button.
Each installed disk array (64 LDEVs) is displayed by LDEV range
(for example, 40-7f).
The Subsystem ID Define window opens.
6. Enter the desired SSID. The SSID must be unique.
7. Select OK. The specified SSID is assigned to the selected disk array.
