HP StorageWorks LUN Configuration Manager XP: user’s guide

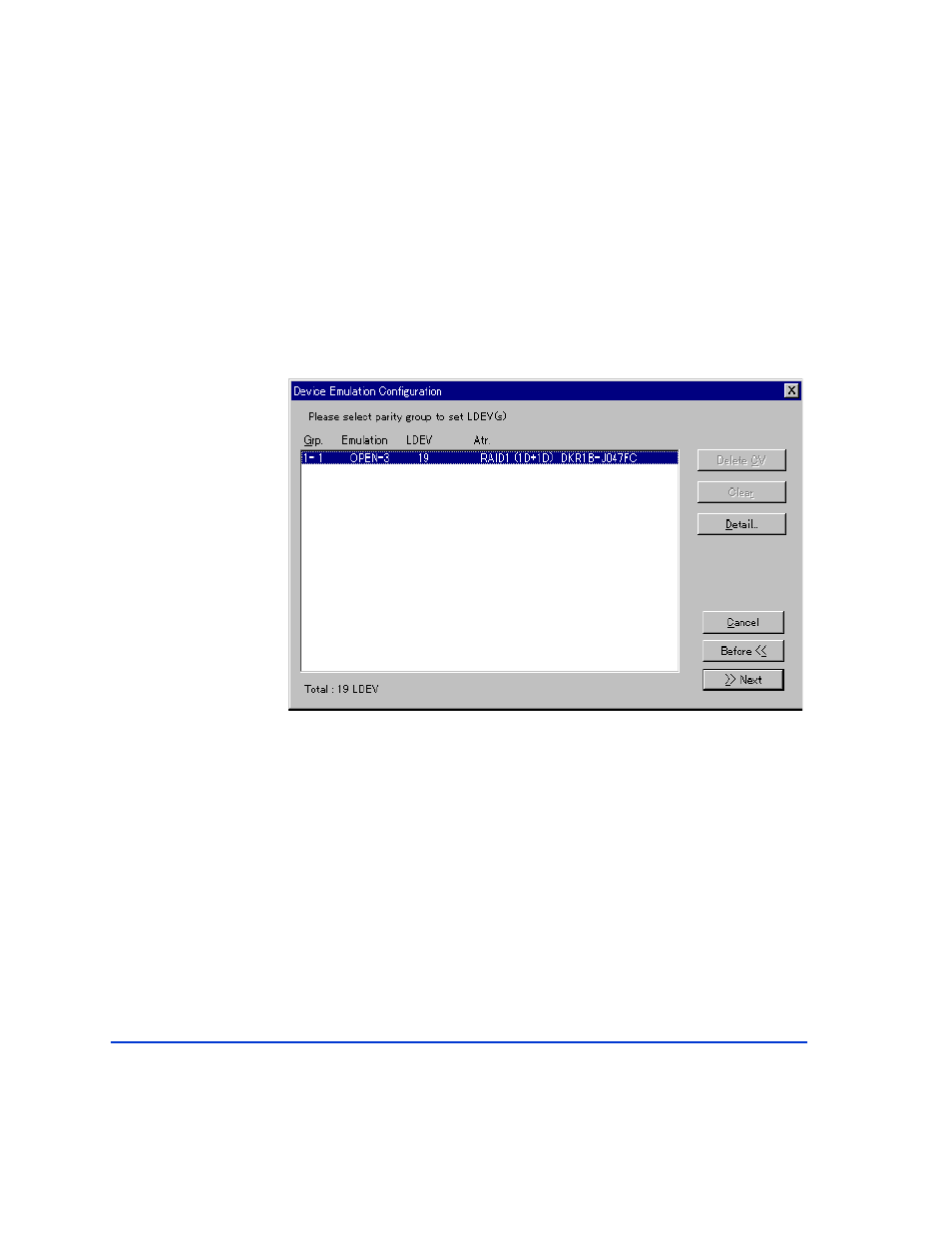

Device Emulation Configuration window

The parity group configuration of each CU includes the number of LUNs,
emulation type, and RAID level of each parity group. This information is
displayed on the Device Emulation Configuration window. The installed
parity groups are displayed by location: [frame number] - [parity group
number].

The Device Emulation Configuration window displays the following infor-
mation:

Grp

The domain number and parity group number of the selected
LDEV.

Emulation The

emulation

type.

LDEV

The LDEV number.

Atr

(Attribute) The RAID level of parity group. A parity group
that already has VSC volumes will display as VSC.

Total

The number of LDEVs in the CU.
