6.20

Scheduling Virtual Copies

3PAR Management Plug-In and Recovery Manager 2.1.0 for VMware vSphere User’s Guide

To add a new scheduled virtual copy task, follow these steps:

1

Click Add.

The

Select Schedule Type dialog appears.

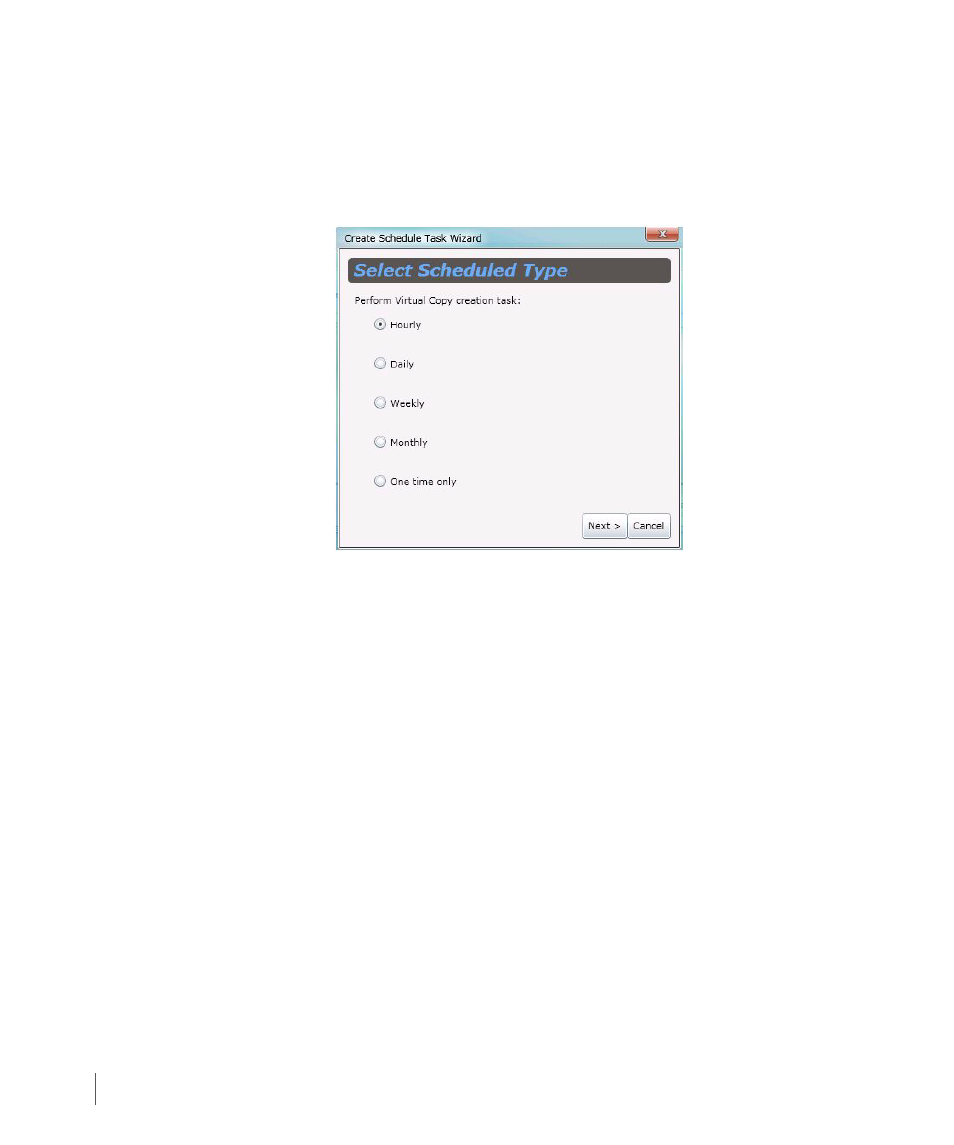

Figure 6-26. Select Schedule Type Dialog

2

Select the time when the scheduled copy creation task is to be performed. You have the

option of scheduling when (hourly, daily, weekly, monthly) the virtual copy is to be created.

You can also schedule a virtual copy creation task to occur on a one-time basis.

3

Click Next. The wizard will request the appropriate information based on the option time

frame you have chosen. As an example that shows the types of information you need to

supply, if you choose Weekly, the Weekly Schedule Task dialog appears.
