LED descriptions
NOTE:
See
"Powering on/powering off" (page 25)
for information on power-cycling enclosures.
MSA 2040 6 Gb 3.5" 12-drive enclosure—rear panel layout
MSA 1040 controllers support the MSA 2040 6 Gb 3.5" 12-drive enclosure. The front panel of the drive
enclosure looks identical to that of an MSA 1040 Array LFF. The rear panel of the drive enclosure is shown
below.

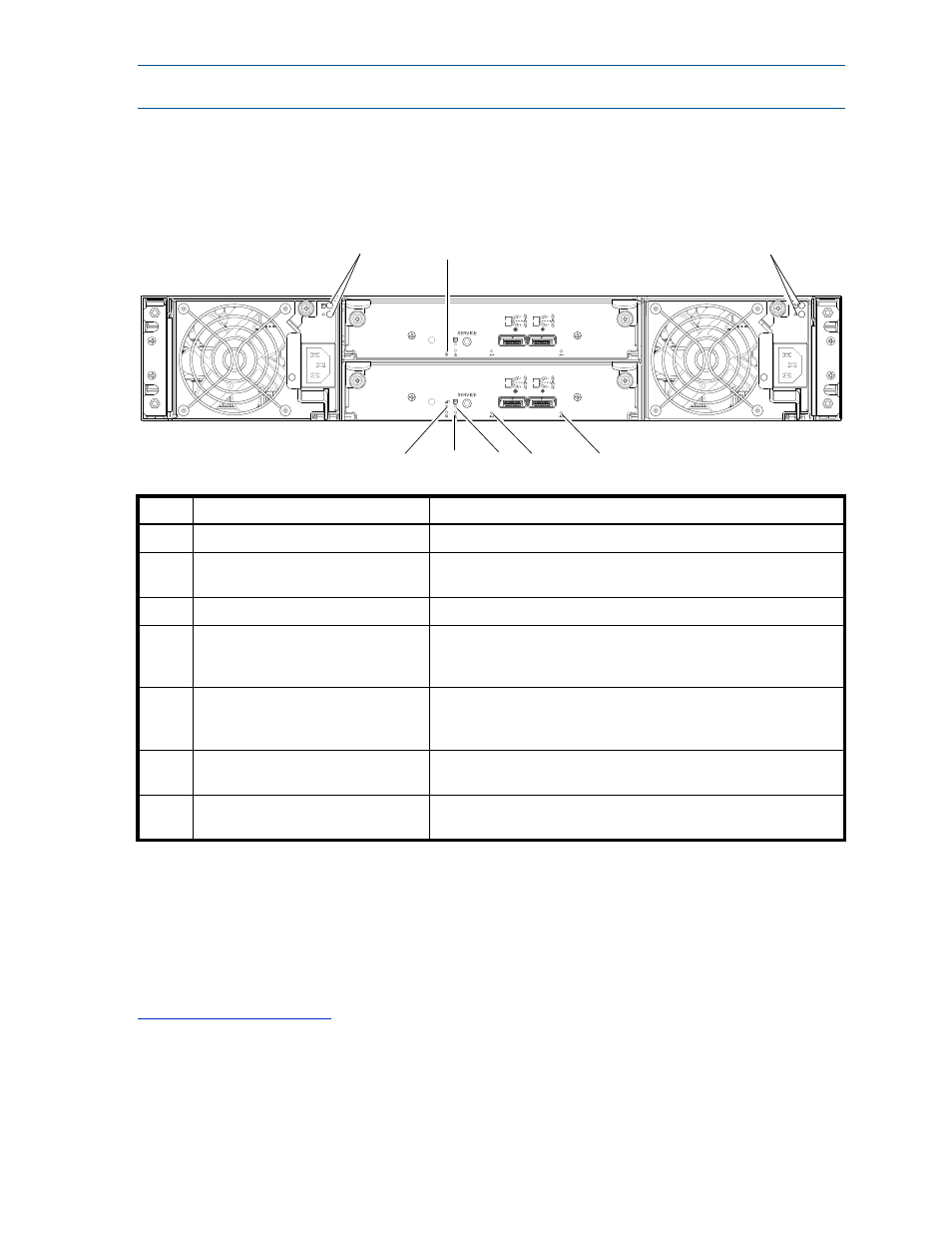

Figure 32 LEDs: MSA 2040 6 Gb 3.5" 12-drive enclosure rear panel
The MSA 2040 6 Gb 3.5" 12-drive enclosure is identical in outward physical appearance to the legacy
P2000 G3 6 Gb 3.5" 12-drive enclosure. For information about upgrading P2000 G3 components for use
with MSA 1040 controllers, see
"Upgrading to MSA 2040" (page 17)
D2700 6Gb drive enclosure
MSA 1040 controllers support D2700 6Gb drive enclosures. For information about the D2700, visit
ictorial representations of this drive enclosure are also provided in the MSA
1040 Quick Start Instructions and MSA 1040 Cable Configuration Guide.
LED
Description
Definition
1
Power supply LEDs
See
.
2
Unit Locator
Off — Normal operation.
Blinking white— Physically identifies the expansion module.
3
OK to Remove
Not implemented.
4
Fault/Service Required
Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
5
FRU OK
Green — Expansion module is operating normally.
Blinking green — System is booting.
Off — Expansion module is not OK.
6
SAS In Port Status
Green — Port link is up and connected.
Off — Port is empty or link is down.
7
SAS Out Port Status
Green — Port link is up and connected.
Off — Port is empty or link is down.
IN
OUT
IN
OUT
6Gb/s
6Gb/s
6Gb/s
6Gb/s
2
3
4
5
7
1
6
