LED descriptions
1
When in FC mode, the SFPs must be a qualified 8 Gb fibre optic option described in QuickSpecs.
2
When in 1 Gb iSCSI mode, the SFPs must be a qualified RJ-45 iSCSI option as described in QuickSpecs. The 1 Gb iSCSI mode does
not support an iSCSI optic option.
3
When powering up and booting, iSCSI LEDs will be on/blinking momentarily, then they will switch to the mode of operation.
4
When port is down, both LEDs are off.

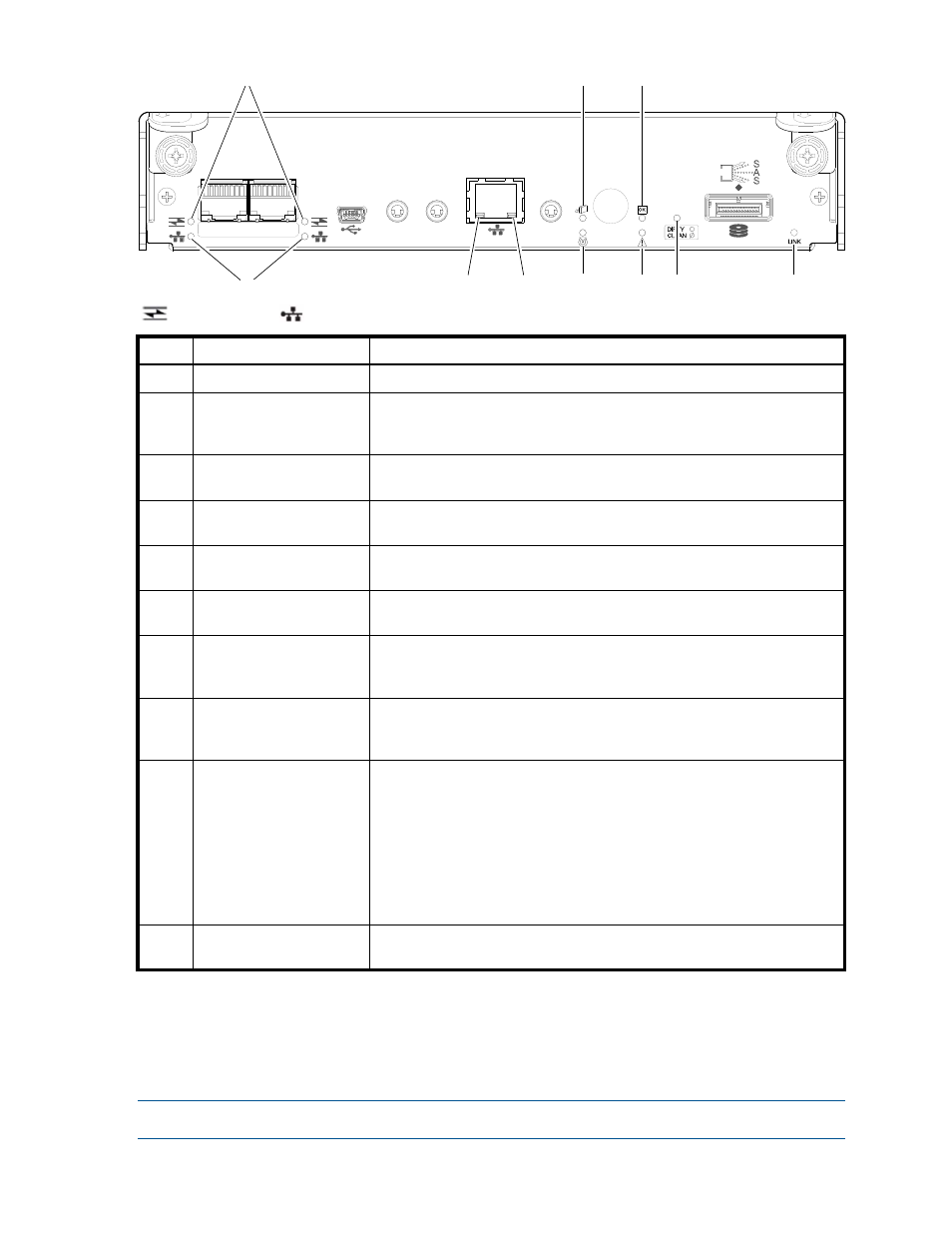

Figure 30 LEDs: MSA 1040 controller module (equipped with 1 Gb RJ-45 SFPs)
NOTE:
Once a Link Status LED is lit, it remains so, even if the controller is shutdown via the SMU or CLI.
LED
Description
Definition
1
Not used in example
1
The FC SFP is not show in this example [see
2
Host 1 Gb iSCSI
2,3
Link Status/
Link Activity
Off — No link detected.
Green — The port is connected and the link is up; or the link has I/O or
replication activity.
3
Network Port Link
Active Status
4
Off — The Ethernet link is not established, or the link is down.
Green — The Ethernet link is up (applies to all negotiated link speeds).
4
Network Port Link Speed
4
Off — Link is up at 10/100base-T negotiated speeds.
Amber — Link is up and negotiated at 1000base-T.
5
OK to Remove
Off — The controller module is not prepared for removal.
Blue — The controller module is prepared for removal.
6
Unit Locator
Off — Normal operation.
Blinking white — Physically identifies the controller module.
7
FRU OK
Off — Controller module is not OK.
Blinking green — System is booting.
Green — Controller module is operating normally.
8
Fault/Service Required
Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled power-up or a cache flush or restore
error.
9
Cache Status
Green — Cache contains unwritten data and operation is normal. The
unwritten information can be log or debug data that remains in the cache, so
a Green cache status LED does not, by itself, indicate that any user data is at
risk or that any action is necessary.
Off — In a working controller, cache is clean (contains no unwritten data).
This is an occasional condition that occurs while the system is booting.
Blinking green — A CompactFlash flush or cache self-refresh is in progress,
indicating cache activity.
See also
10
Expansion Port Status
Off — The port is empty or the link is down.
On — The port is connected and the link is up.
CACHE
CLI
CLI
LINK
ACT
6Gb/s
SERVICE−1
SERVICE−2
PORT 1
PORT 2
5
3
4
6
8 9
7
:
= FC LEDs
= iSCSI LEDs
1
2
