Controller enclosure—rear panel layout
15
MSA 1040 controller module—rear panel components
shows host ports configured with either 8 Gb FC or 10GbE iSCSI SFPs. The SFPs look identical.
Refer to the LEDs that apply to the specific configuration of your host ports.

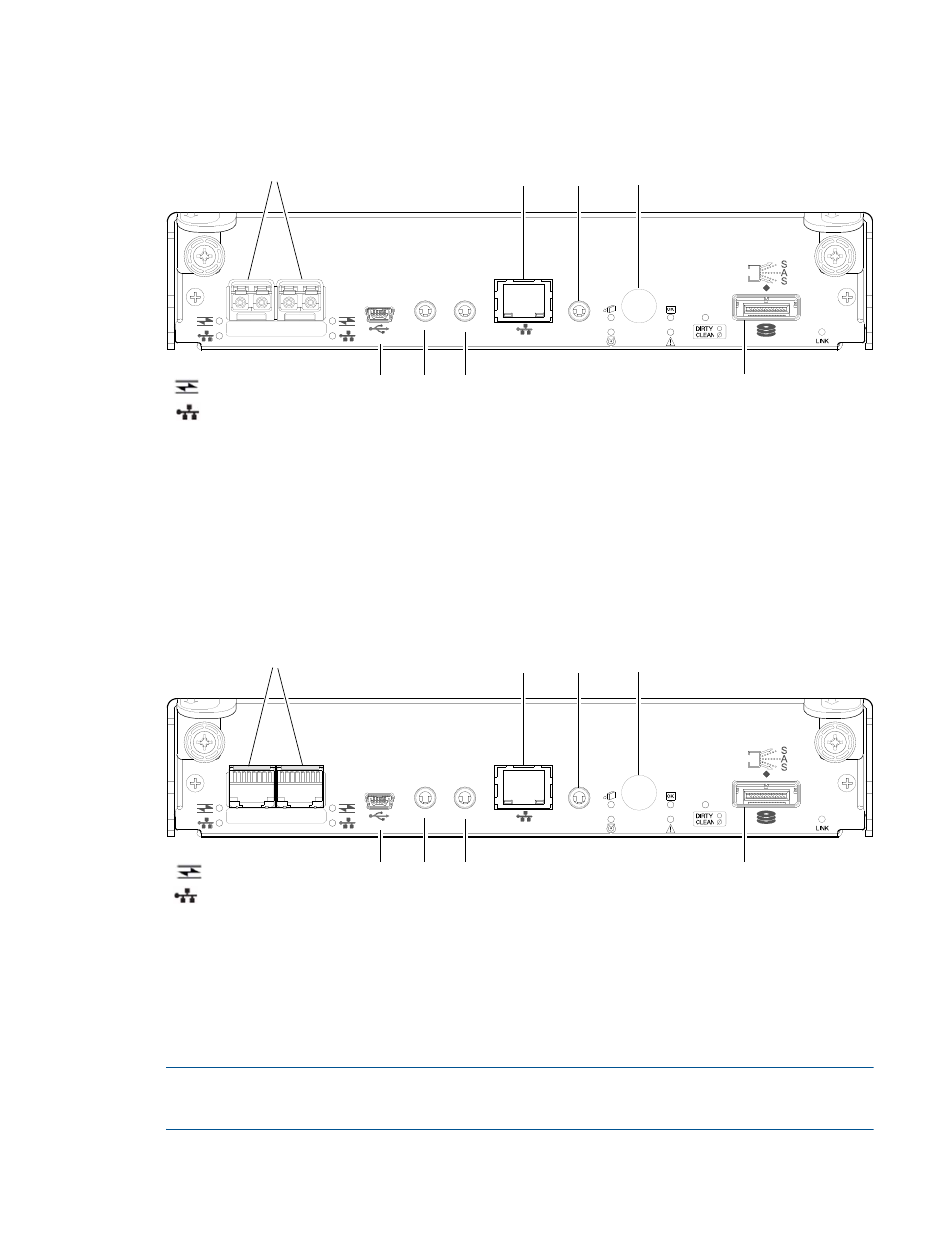

Figure 4 MSA 1040 controller module face plate (FC or 10GbE iSCSI)
shows host ports configured with 1 Gb RJ-45 SFPs.
Figure 5 MSA 1040 controller module face plate (1 Gb RJ-45)
NOTE:
For information about host port configuration, see the “Configuring host ports” topic within the
HP MSA 1040 SMU Reference Guide or online help.
1
Host ports: used for host connection or replication
2
CLI port (USB - Type B)
3
Service port 2 (used by service personnel only)
4
Reserved for future use
5
Network port
6
Service port 1 (used by service personnel only)
7
Disabled button (used by engineering only)
(Sticker shown covering the opening)
8
SAS expansion port
1
Host ports: used for host connection or replication
2
CLI port (USB - Type B)
3
Service port 2 (used by service personnel only)
4
Reserved for future use
5
Network port
6
Service port 1 (used by service personnel only)
7
Disabled button (used by engineering only)
(Sticker shown covering the opening)
8
SAS expansion port
CACHE
CLI
CLI
LINK
ACT
6Gb/s
SERVICE−1
SERVICE−2
PORT 1
PORT 2
1
5
7
3 4
6
8
2
