Cabling 90

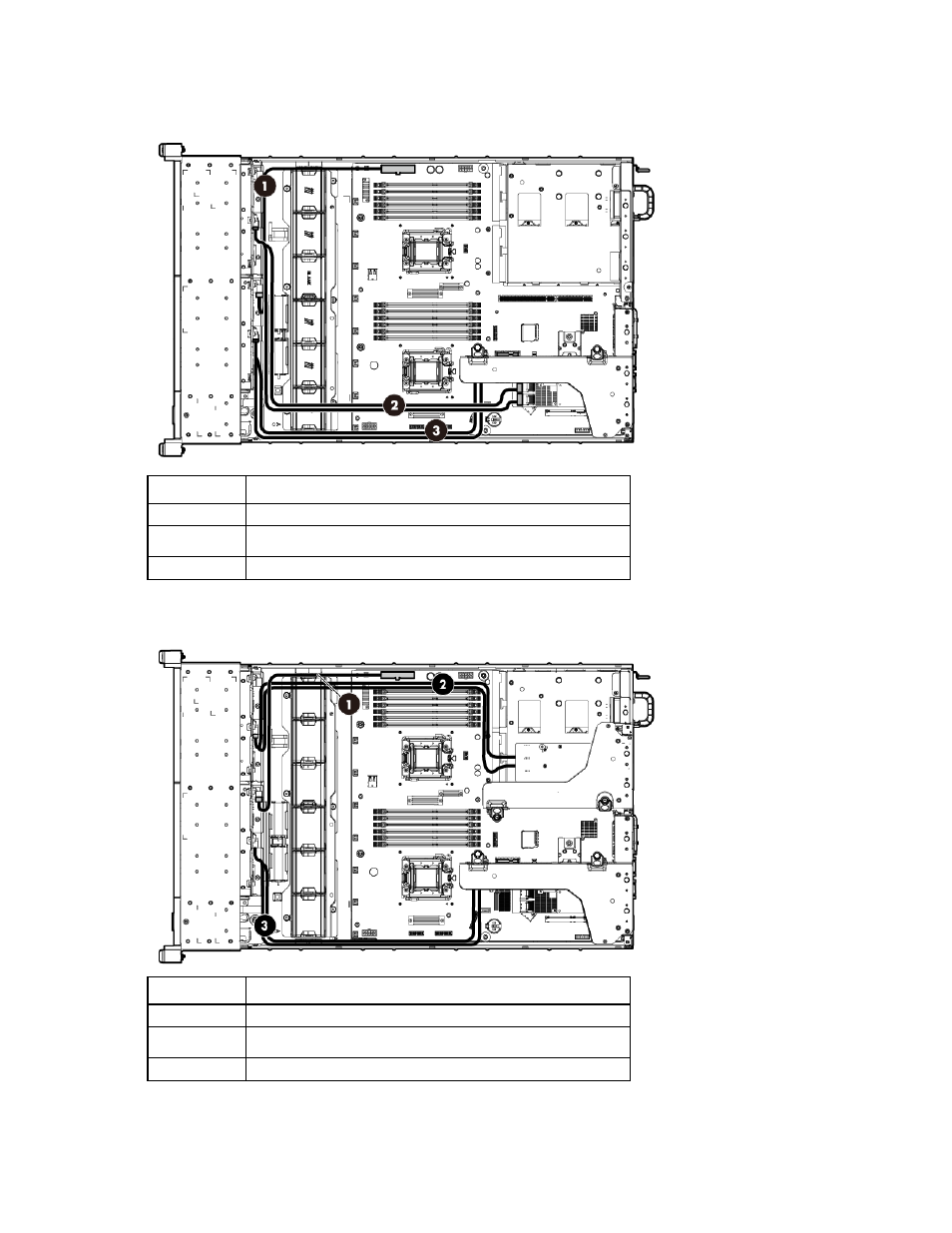

• Mini-SAS cables connected to a storage controller option and a riser board with SAS support installed
in the primary PCI riser cage
Item Description
1 Power cable
2 Mini-SAS cables to the storage controller option
3 Mini-SAS cables to a riser board with SAS support
• Mini-SAS cables connected to a storage controller option installed in the secondary PCI riser cage, and
a riser board with SAS support installed in the primary PCI riser cage.
Item Description
1 Power cable
2
Mini-SAS cables to the storage controller option
3 Mini-SAS cables to the riser board with SAS support
