HP ProLiant DL380e Gen8 Server - Manual (Page 75)

Hardware options installation 75
o Extend the server from the rack (on page 20 ).
o Remove the server from the rack (on page 22 ).
4. Remove the access panel (on page 23 ).
5. Remove the air baffle (on page 24 ).
6. Do one of the following:
o Remove the primary PCI riser cage (" Remove the PCI riser cages " on page 25 ).
o Remove the secondary PCI riser cage (" Remove the PCI riser cages " on page 25 ).
7. Install the GPU. For more information, see the documentation that ships with the GPU option.

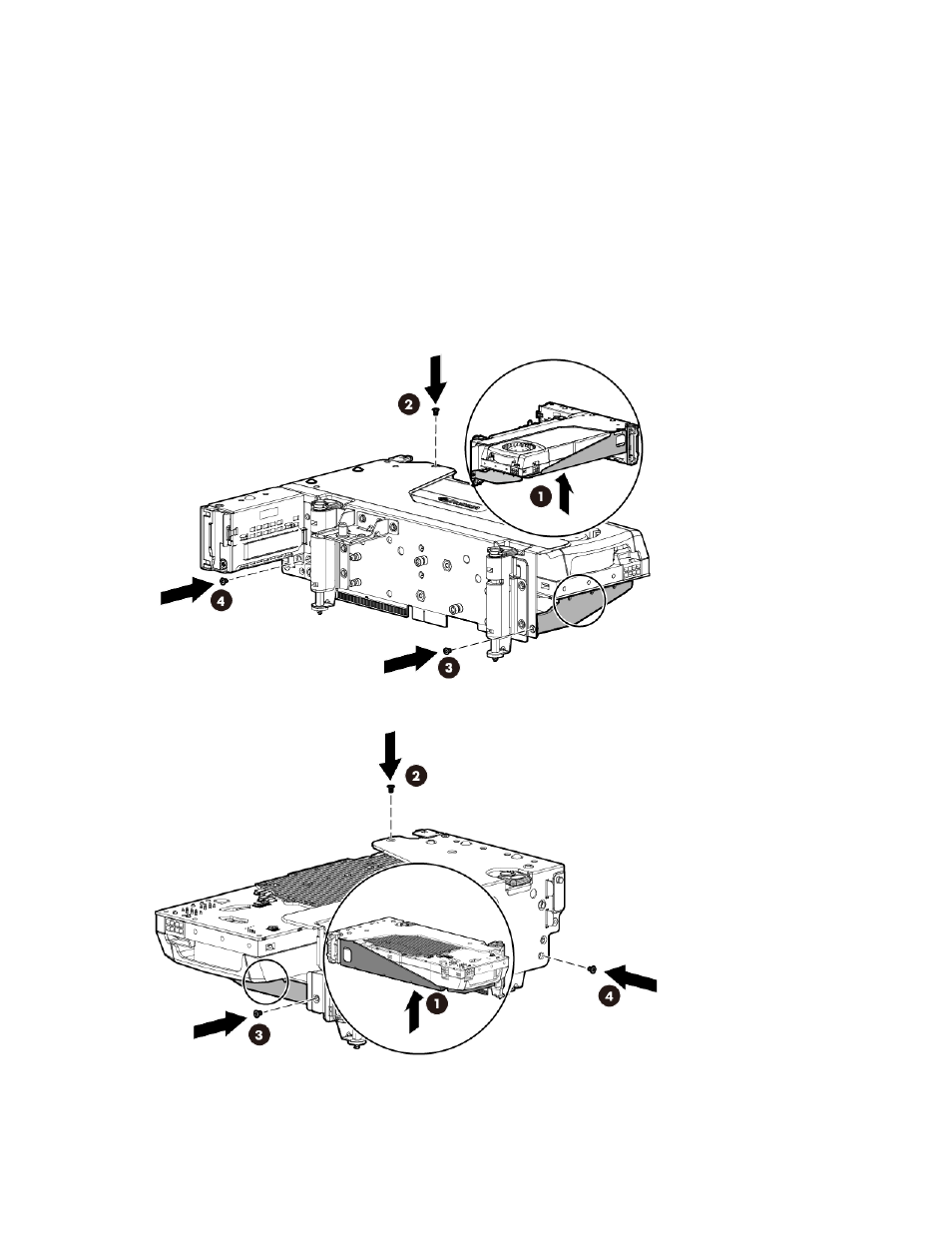

8. If you are installing a dual-rank GPU, install the GPU retaining bracket:
o GPU retaining bracket in the primary PCI riser cage
o GPU retaining bracket in the secondary PCI riser cage
9. Connect the GPU power cable to the GPU:
