Component identification 10

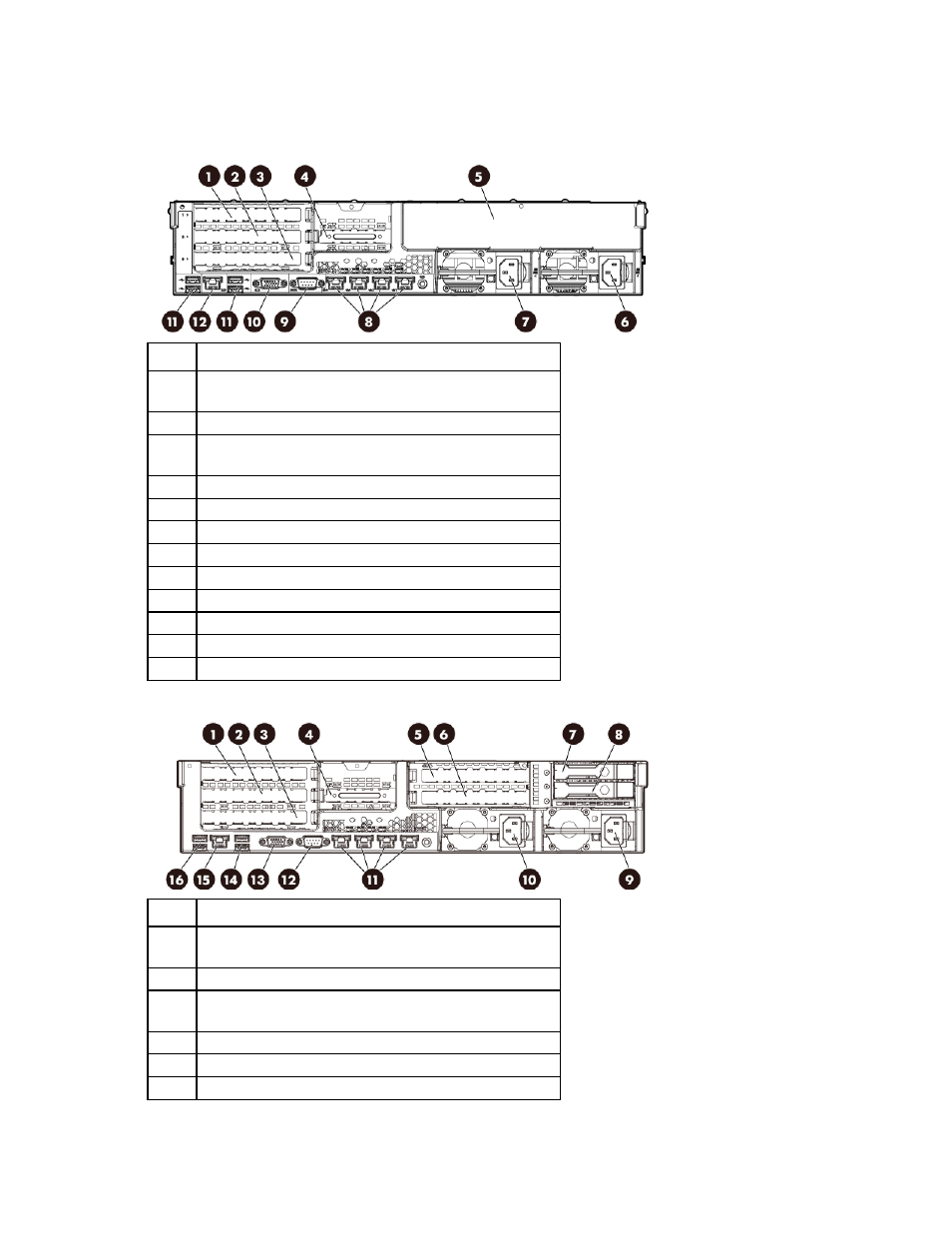

Rear panel components
• Rear panel without the secondary PCI riser cage and rear drive options
Item Description
1 Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)*
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4, 1)*
2
Slot 2 PCIe3 x16 (8, 4, 1)*
3 Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)*
4 Slot 4 PCIe2 x8 (4, 1)*
5 LFF drive blank
6 Power supply 1
7
Power supply 2 (optional)
8 NIC connectors (4-1)
9 Serial connector
10 Video connector
11 USB 2.0 connectors
12 iLO 4 connector
• Rear panel with the secondary PCI riser cage and 2 SFF rear drive options
Item Description
1 Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)*
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4, 1)*
2 Slot 2 PCIe3 x16 (8, 4, 1)*
3 Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)*
4 Slot 4 PCIe2 x8 (4, 1)*
5 Slot 5 PCIe3 x16 (16, 8, 4, 1) (optional)*
6
Slot 6 PCIe3 x16 (8, 4, 1) (optional)*
