Component identification 12

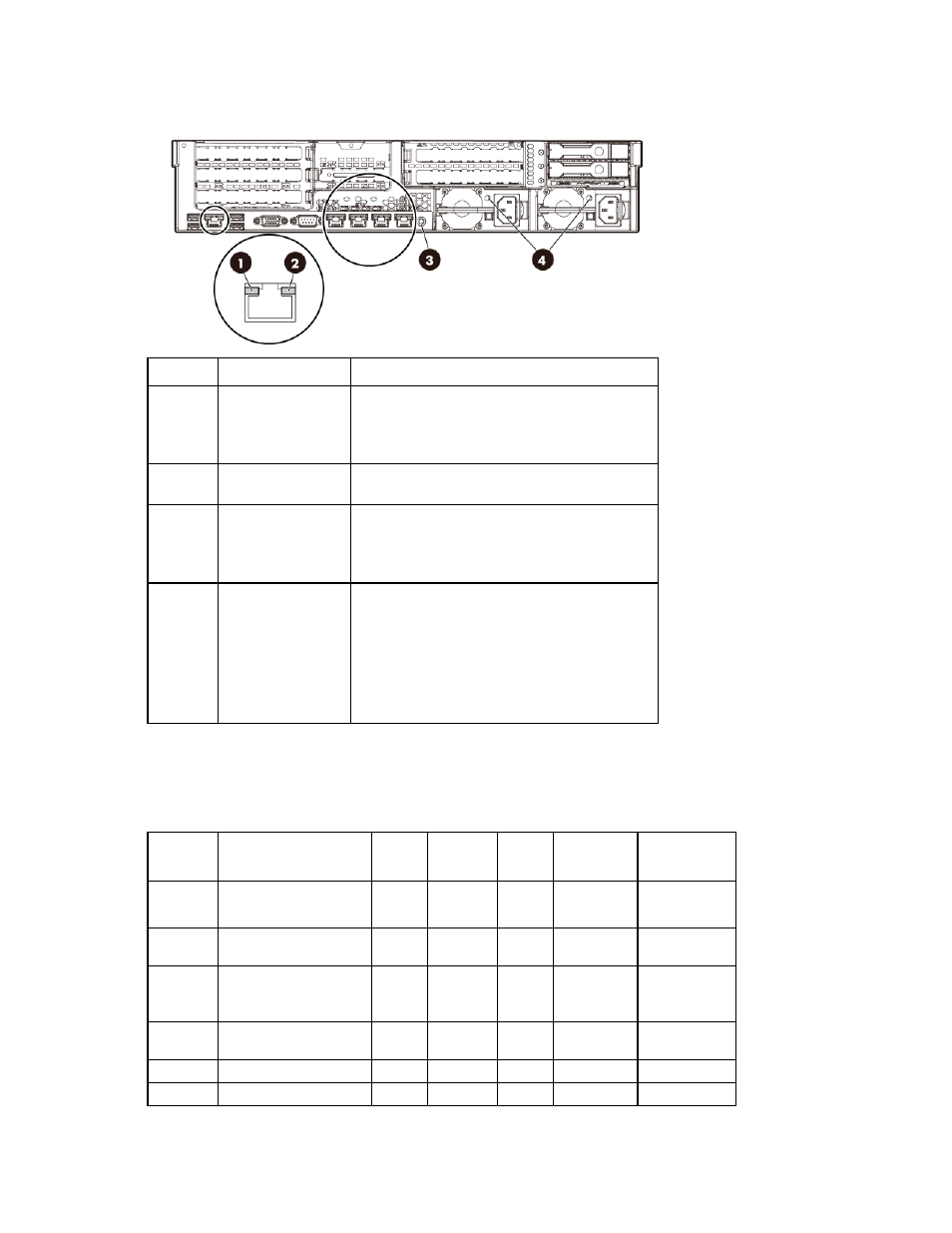

Rear panel LEDs and buttons
Item Description Status
1 NIC status LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network
active
Off = No network activity
2
NIC link LED Solid green = Link exists
Off = No link exists
3
UID button/LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote
management or firmware upgrade in progress
Off = Deactivated
4 Power supply LED Solid green = Normal
Off = One or more of the following conditions
exists:
• Power is unavailable
• Power supply failed
• Power supply is in standby mode
• Power supply error
PCIe riser board slot definitions
Slot
number
Riser board option Type Length Height Connector
link width
Negotiable
link width
1 Riser board without SAS
support PCIe3 Full Full x8 x4
Riser board with SAS
support PCIe3 Full Full x16 x8
2 Riser board options with
and without SAS
support
PCIe3 Half Full x16 x8
3
Riser board without SAS
support PCIe3 Half Full x8 x8
4 Low-profile riser board PCIe2 Half Half x8 x4
5 PCIe x16 riser board* PCIe3 Full Full x16 x16
