Installing a New Optical Drive
1
Make sure the jumper on the new drive is in the CS
(Cable Select) position. Slide the new optical drive
through the front of the computer. Don’t slide the drive
in all the way — you need room to attach the cables.
2
Connect the cables to the back of the drive.
3
Push the drive all the way in, align the screw holes,
and insert the screws.
4
Replace the fan duct (see page 48), the front panel
(see page 49), and the side panels (see page 46).

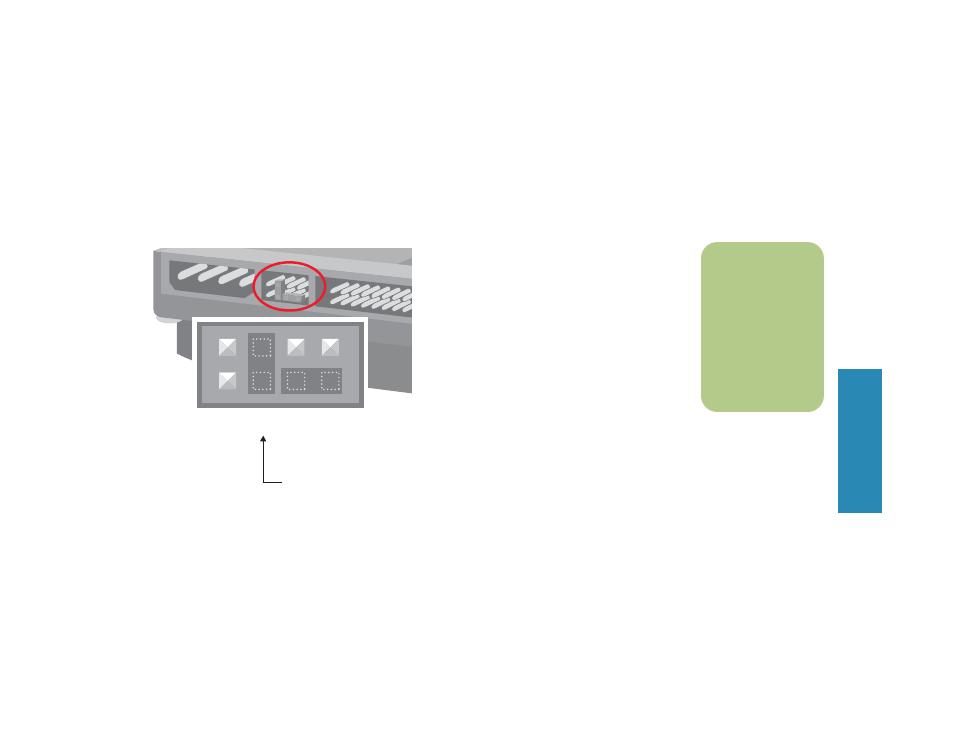

Example drive with
Cable Select jumper
installed (your drive
may vary)
n
A jumper is a
small plastic
connector or wire
which electrically
connects two pins
in order to define
a configuration
setting.
