HP Media Center m270 Desktop PC User Manual
Page 56
48

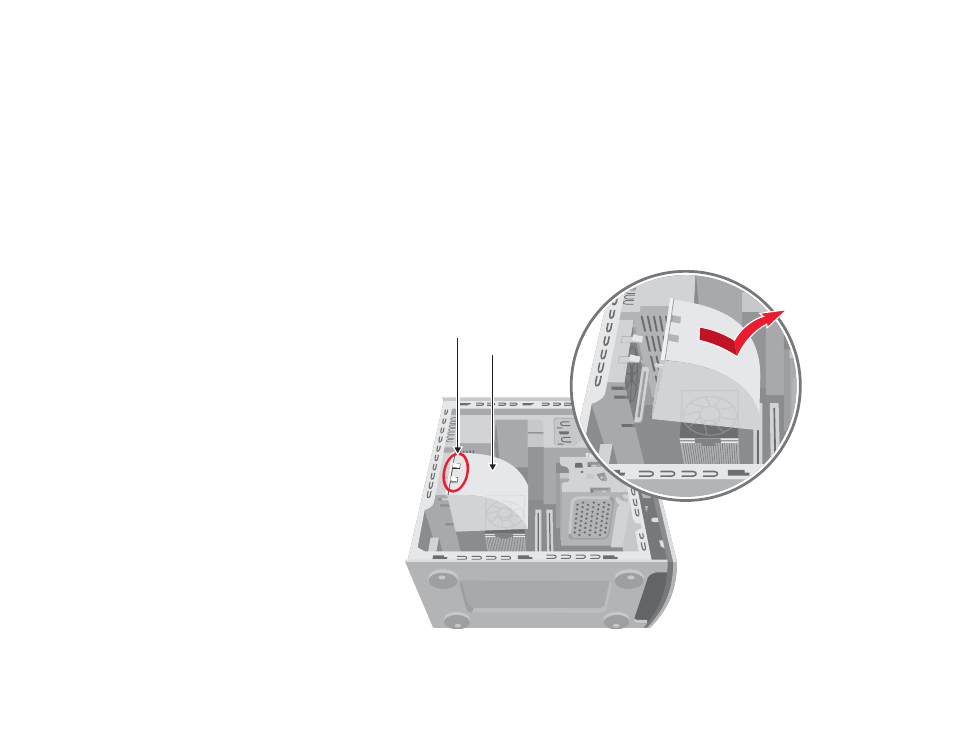

Release tabs
Fan duct
Removing the Fan Duct
Remove the fan duct when replacing memory, an optical
drive, or the drive cage.
1
To disengage the fan duct, push down the two tabs.
You can push with your fingers or a pen.
2
Rotate the fan duct down and out to remove it from
the chassis.
Replacing the Fan Duct
1
To replace the fan duct, hold the fan duct at a
45-degree angle, and align the bottom of the duct
with the slot on the fan holder.
2
Rotate the fan duct into position. Make sure it is
securely locked.
