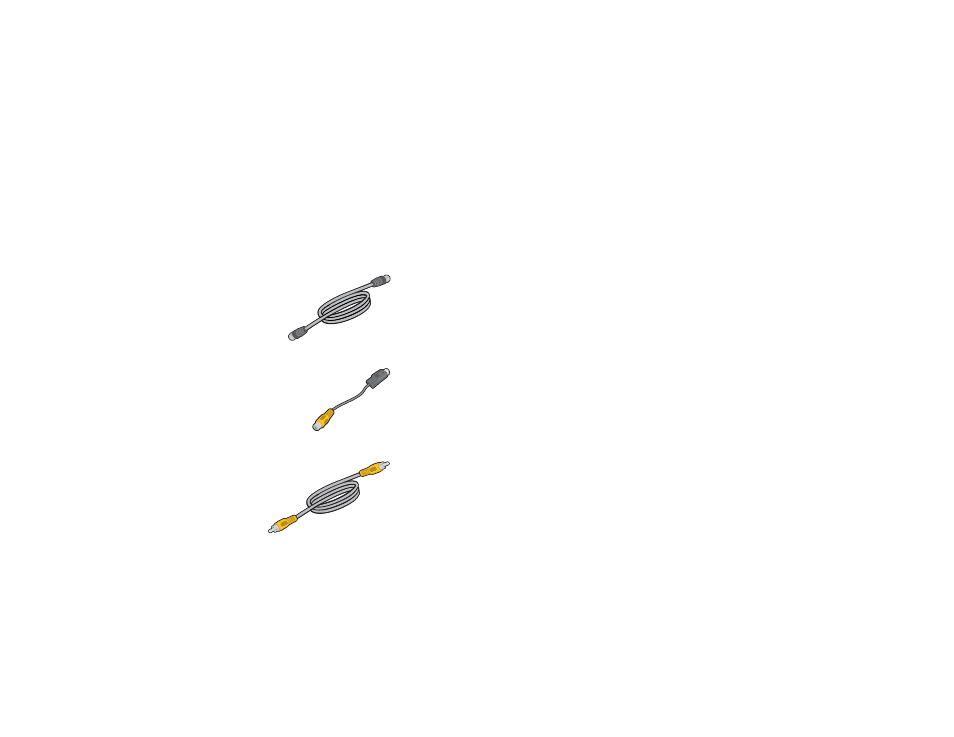

Coaxial cable
S-video to
composite video
adapter
Composite video
cable
Connecting the TV is optional and not required to enjoy
Media Center.
Using the TV Cables
Your PC comes with the following cables for the TV
signal:
■ One coaxial cable (10 feet). Use a coaxial cable for
a BNC connector, such as the TV source signal.
Optional Connections
■ One s-video to composite video adapter cable
(2 inches). Connect this adapter to an s-video
connector, and then attach a composite video cable
to the adapter.
■ One composite video cable (6 feet). Use this cable
to connect a composite video connector on the back
of the PC, such as COMP for the TV out signal, to
your TV.
You may need other or additional cables, depending on
your TV and your TV signal source. For example, when
your TV has an s-video connector, you may want to use
an s-video cable to connect the TV OUT on the PC to
your TV. An s-video cable provides separate color and
black-and-white image signals, and delivers a sharper
image than a composite video cable does.
