49
Upgrading
Accessing the Optical Drives
To access the optical drives, you remove the side panels,
the front panel, and the fan duct.
1
Remove both side panels. (See page 46.)
2

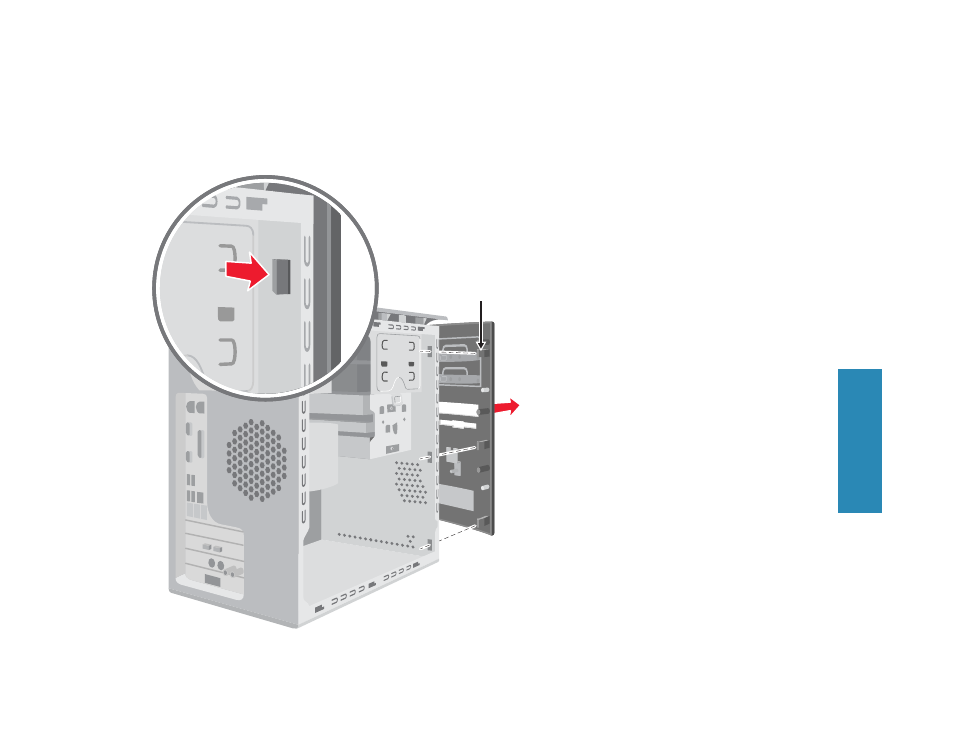

To release the front panel, locate the three small tabs
on each side of the chassis. Press each tab away
from the center of the chassis. Press the top pair, the
middle pair, the bottom pair, and then remove the
panel. Reverse this step to replace the front panel.
3
Remove the fan duct. (See page 48.)
Release tab
(3 each side)
