1-10

Chapter 1

Setting Up the Jukebox

Connecting the Jukebox as the Only Peripheral

NOTE

This following configuration is the recommended configuration for this jukebox.

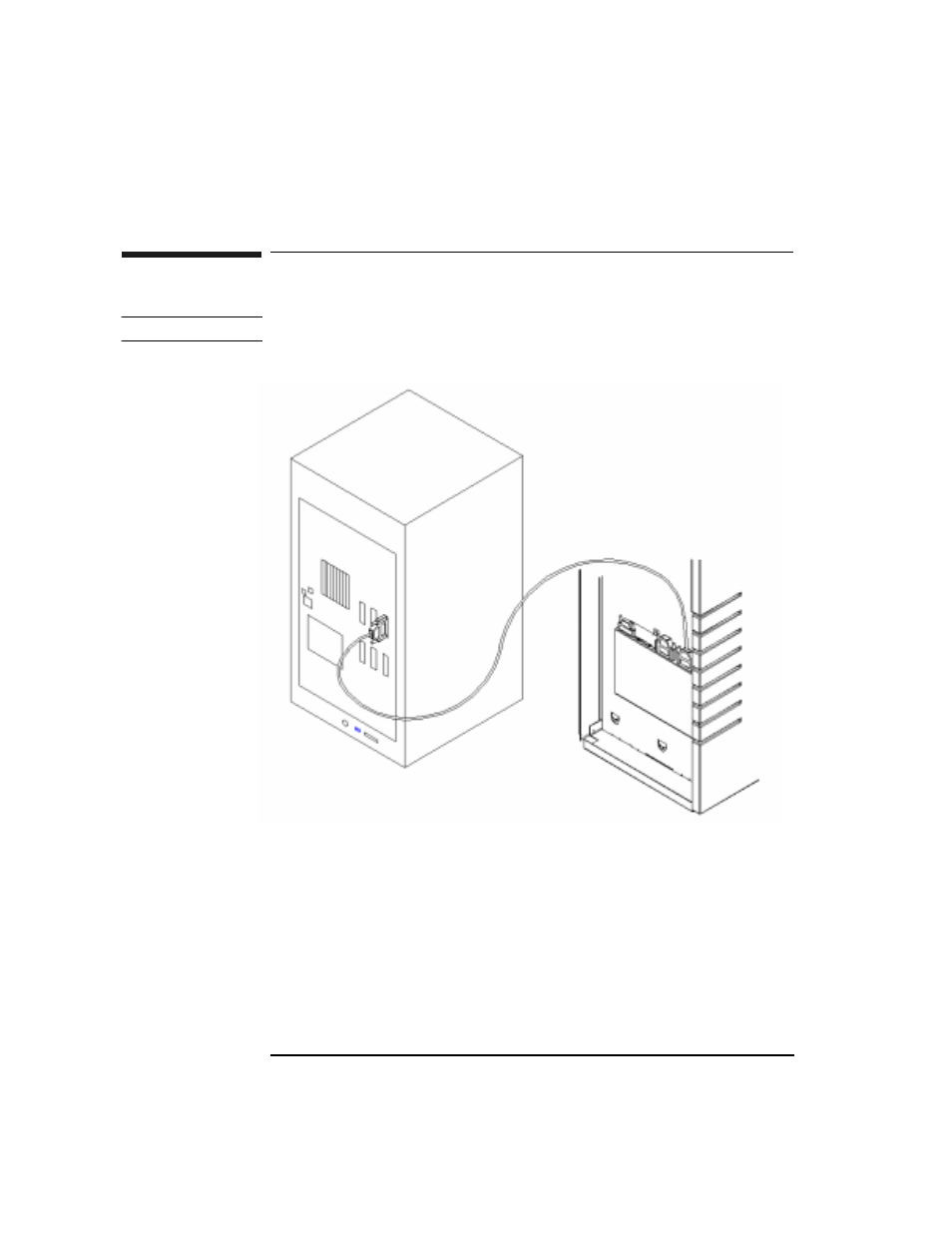

Figure 1-3

Connecting the Jukebox as the Only Peripheral

Refer to Figure 1-1 and 1-2 for the locations of the following switches and
connectors.

1. Ensure the power to the host computer is turned off.

2. Remove the left side access panel (side opposite the mailslot side) by lifting up

on the bottom of the panel and then pulling it away.

3. Select either the single-ended or differential SCSI interface using the SCSI

interface selection switch on the top of the interface assembly (under the left
access cover (see “6” on Figure 1-2).
