B-14

Appendix B

Operating This Jukebox on a SCSI Bus

Default SCSI IDs in the Jukebox When Using Basic SCSI Addressing
and When Using LUN Mode

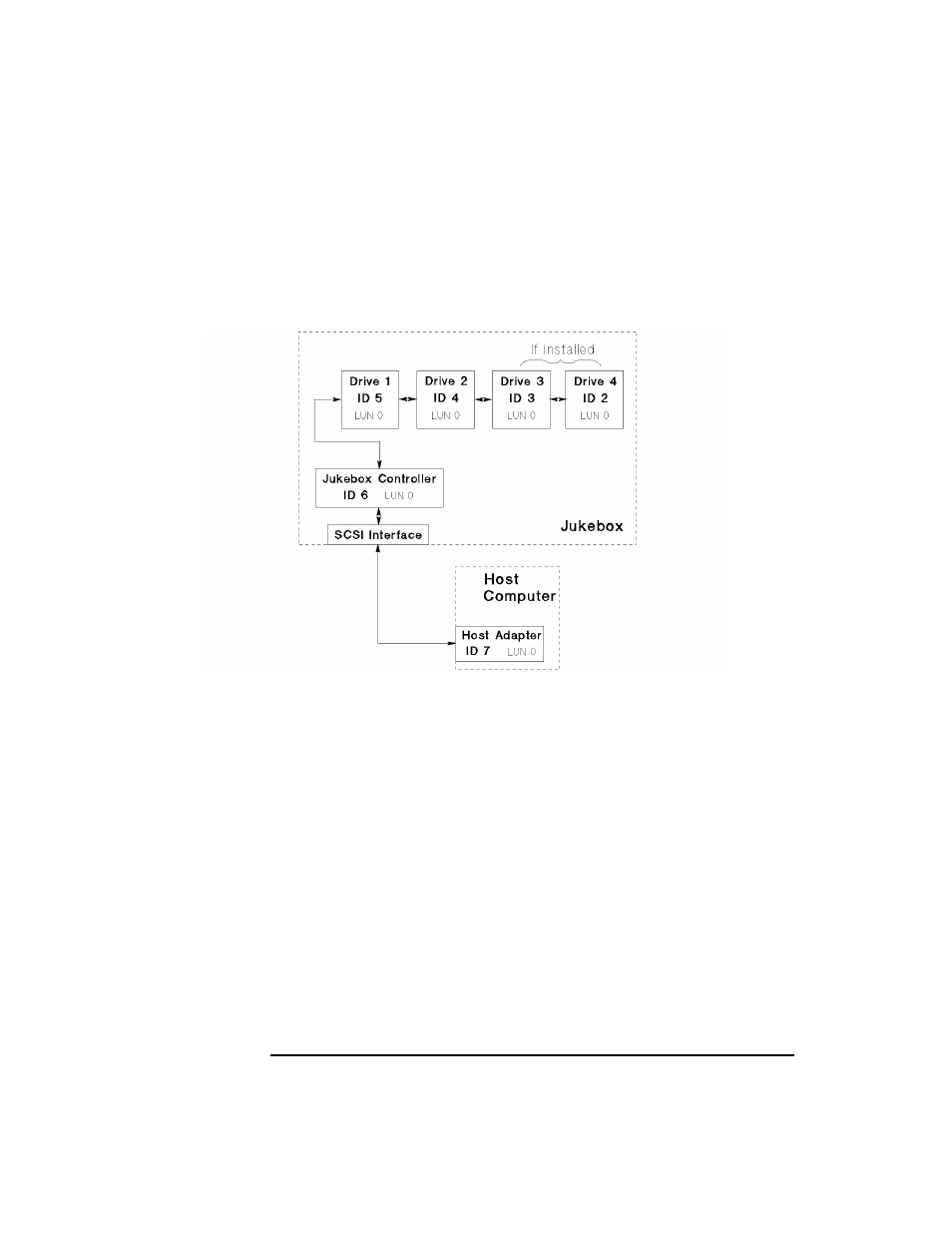

Figure B-2

Two or Four Drives, Basic SCSI Addressing

Displays on the Control Panel

Under

CHOOSE LUN MODE

* menu >>

LUN MODE OFF

Under SCSI IDs * menu

JXBX ID 6 LUN 0

DRV 1 ID 5 LUN 0

DRV 2 ID 4 LUN 0

DRV 3 ID 3 LUN 0

(if installed)

DRV 4 ID 2 LUN 0

(if installed)
