HP UPS Network Module web interface 27

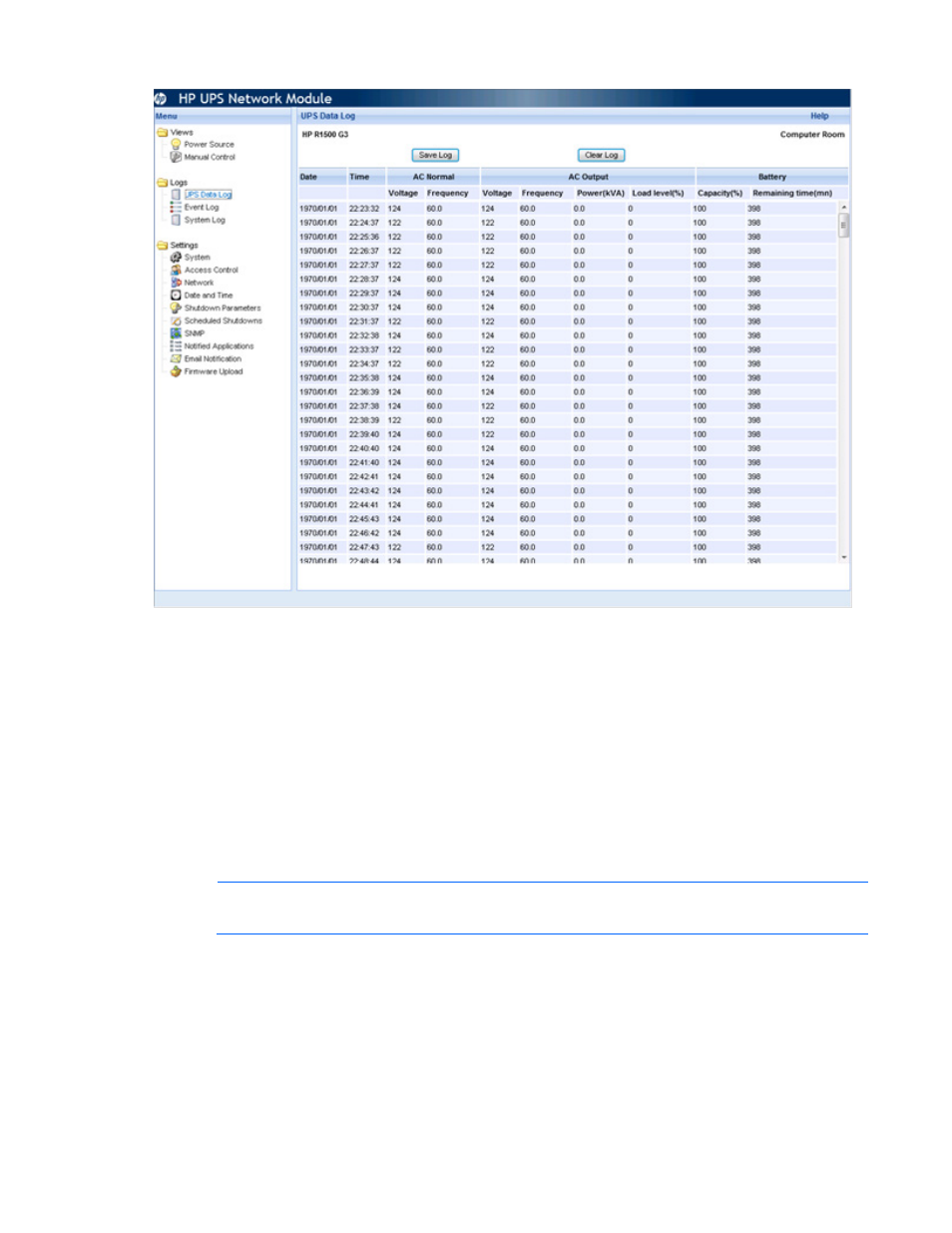

The following information is displayed for a single phase UPS:
• AC Input Voltage—The utility voltage supplying the UPS
• AC Input Frequency—The utility frequency supplying the UPS
• AC Output Voltage—The UPS output voltage
• AC Output Frequency—The UPS output frequency
• AC Output Power (kVA)—The UPS output power
• AC Output Load level (%)—The percentage of load at the UPS output
• Battery Capacity (%)—The percentage of battery charge available
• Battery Remaining time (min)—The estimated remaining backup time
NOTE: When the log reaches the maximum of 435 entries, new entries overwrite the oldest
entries in the log.
On the screen:
• Click Save Log to download the log file (.csv) to your computer.
• Click Clear Log to clear the log files. Only users with administrator privileges can clear logs.
• Click Help to view online help.
