Installing the HP UPS Network Module 13

3.

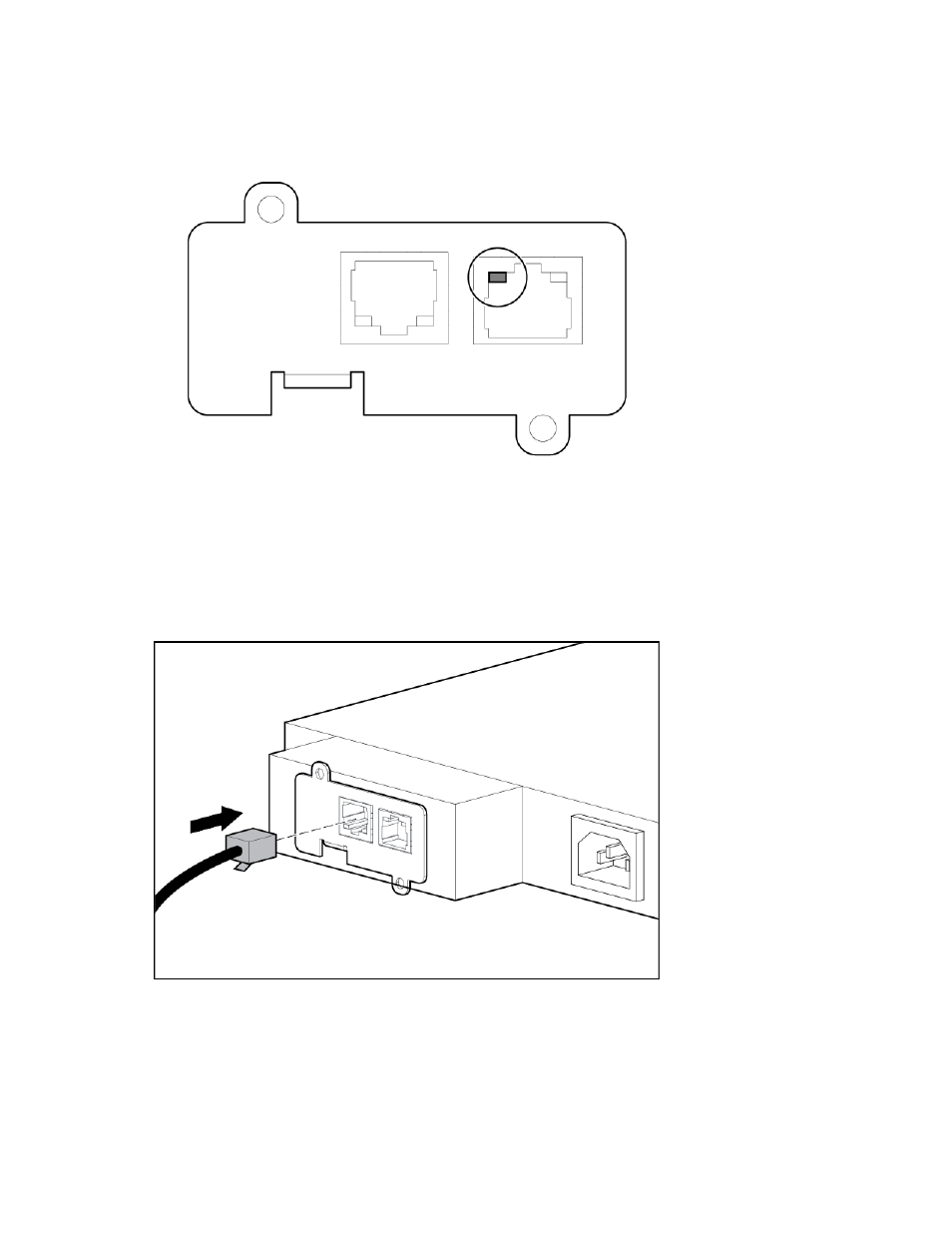

If the UPS is powered up, you can be sure that the UPS Network Module is seated properly and

communicating with the UPS by verifying that the UPS Data LED illuminates solid green, and then flashes
regularly after 2 minutes.

4.

Secure the UPS Network Module using the two screws you removed in step 1.

Connecting the network cable

Connect a standard Ethernet cable between the network connector on the UPS Network Module and a

network jack.

This connection is used to access the UPS Network Module remotely through the web interface. The UPS

Network Module also uses the network connection to communicate to the configured HPPP Clients and to

facilitate SNMP-based monitoring.
