5 Using the ShadowImage for Mainframe GUI
This chapter describes the ShadowImage for Mainframe windows in Remote Web Console.
•
•
•
•
Pair Operation Window
The Pair Operation window (see
) displays the SIz volume and pair information
for the selected CU image of the connected XP storage system and allows you to perform all SIz
operations.
A S-VOL or T-VOL LDEV number that ends with a pound or gate symbol (#) mark indicates that the
LDEV is an external volume (for example, 00:00:01 #). For details regarding the external volumes,
see the HP XP24000/XP20000 External Storage Software User's Guide.
The Pair Operation window displays pair information for SIz and relationship information for
FlashCopy Mirroring and FlashCopy Mirroring V2, however, this section only explains the items
related to the SIz pairs. For details about the items related to the relationships, see the HP
XP24000/XP20000 for FlashCopy Mirroring Software User's Guide.

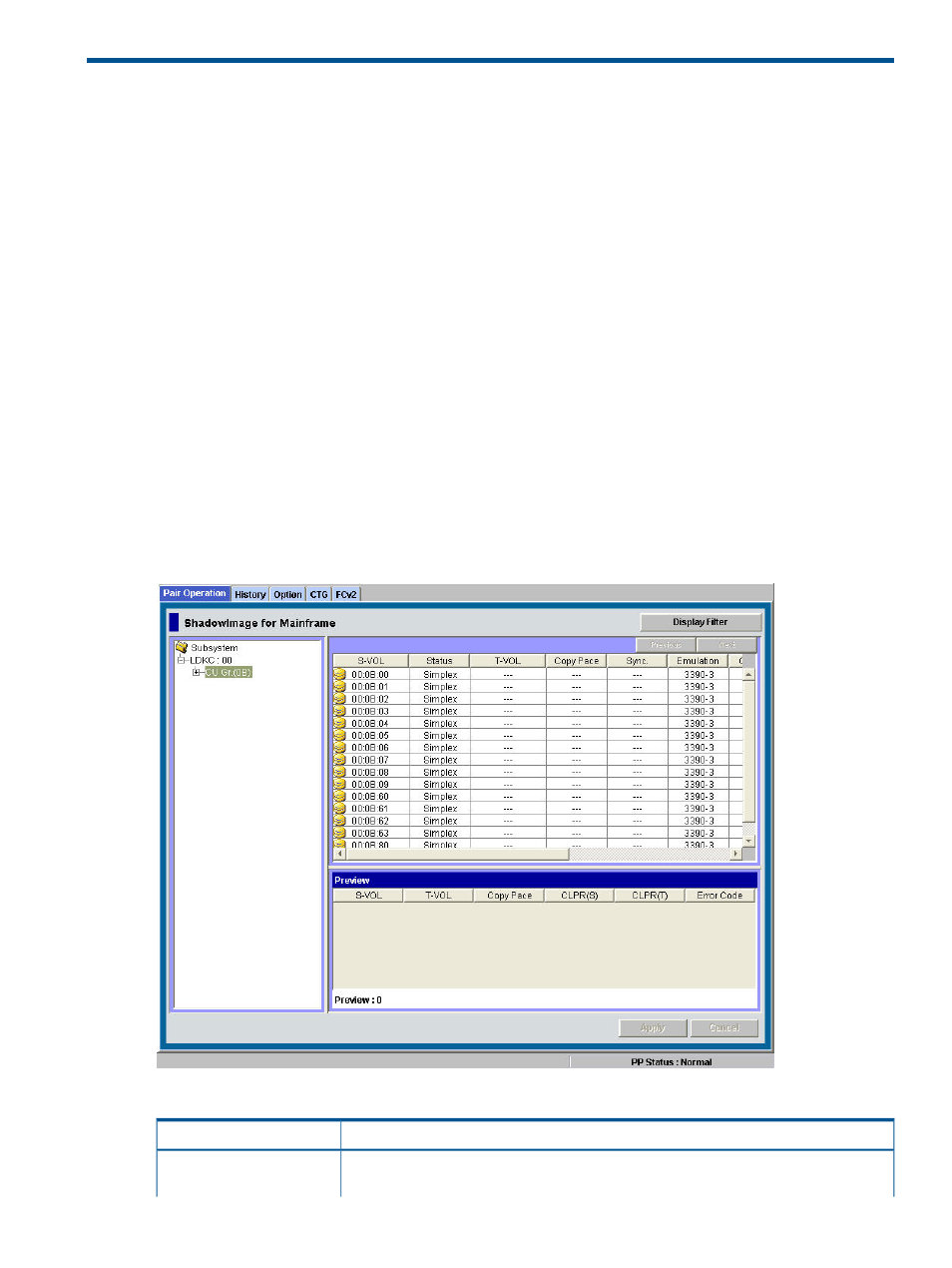

Figure 22 Pair Operation Window
Table 17 Pair Operation Window Features
Description
Item
Allows you to select a defined CU image or LDEV ID. By selecting a CU image or an
LDEV ID, the corresponding volume or volume pair displays in the Volume List on the
Tree
Pair Operation Window
51
