HP Pavilion t338d Desktop PC User Manual
Page 121

upgrading and servicing the pc (1)
113
installing the 7-in-1 memory card reader or the
diskette (floppy) drive
1 See “removing the 7-in-1 memory card reader or the diskette (floppy) drive”
on page 111.

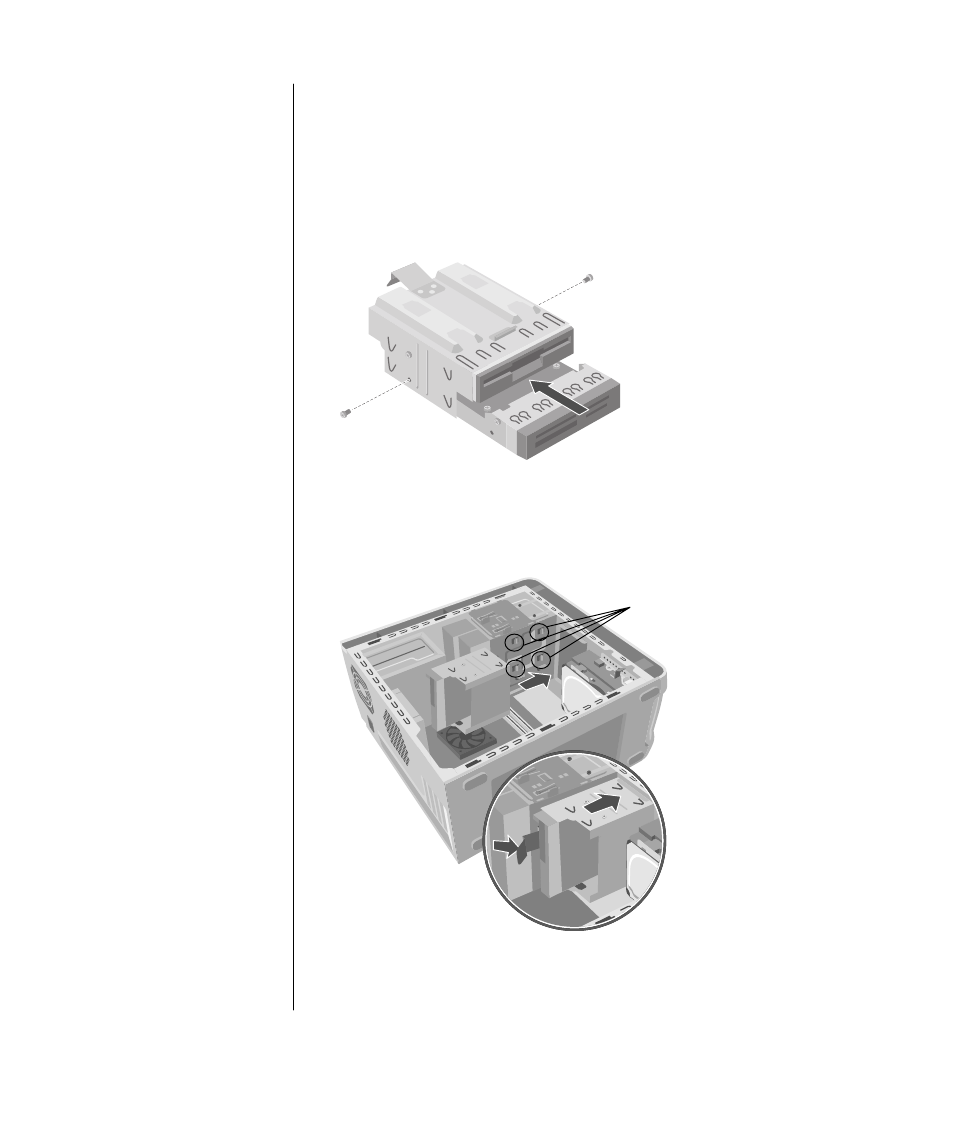

2 Slide the replacement drive into the drive cage until the two screw holes on
each side are aligned.
3 Attach the screw on each side of the drive cage.
4 Pull the drive cage release tab (E) back. Align the four holes on the top of the
drive cage with the four hooks (G) on the bottom of the optical drive bracket.
Slide the drive cage so that the hooks go into the holes on the drive cage, and
then push the drive cage forward until it snaps into place.
E
G
5 Connect the cables to the back of the drive you installed.
6 Replace the side panel. See page 106.
