HP Pavilion t338d Desktop PC User Manual
Page 120

112
user’s guide

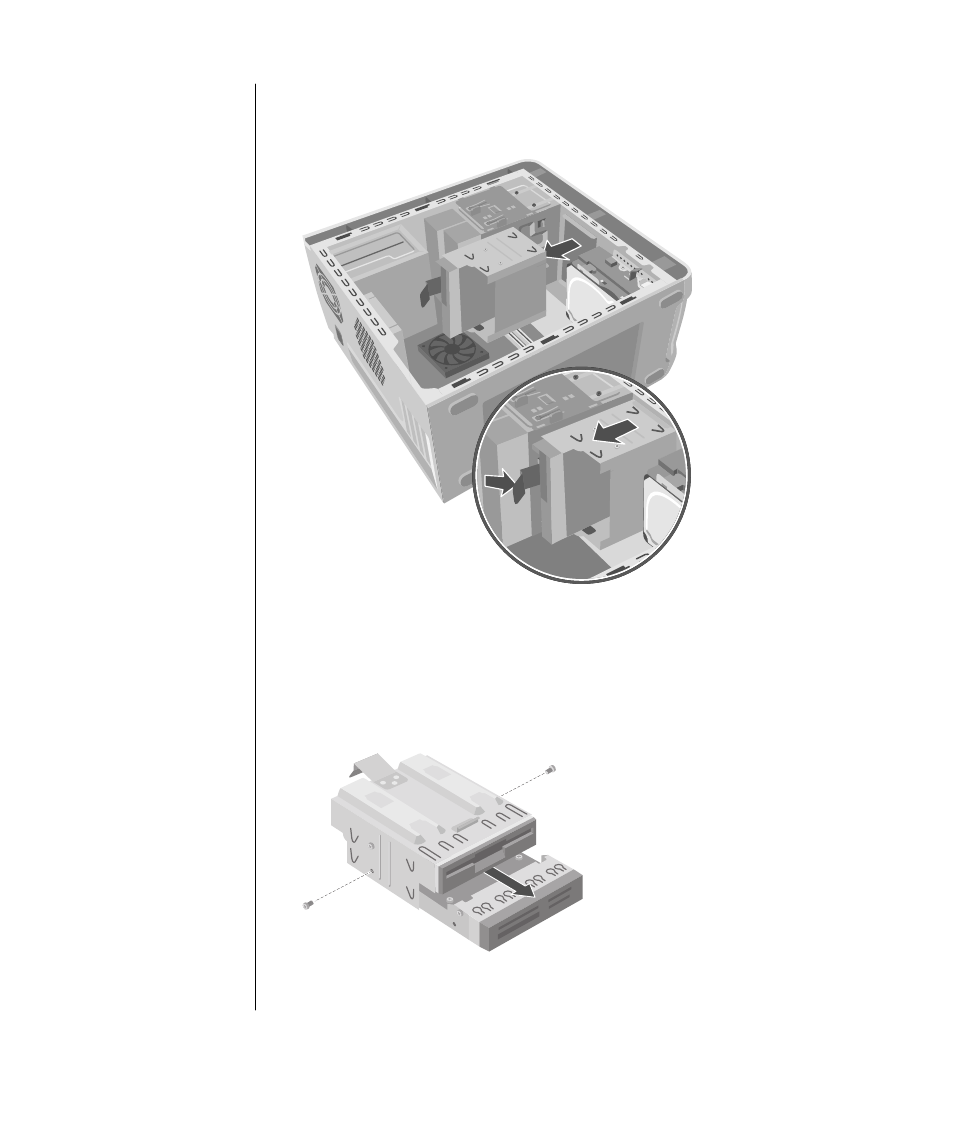

5 Hold the release tab down as you pull the cage toward the back of the chassis,
and then lift it out (F). Removing the drive cage provides more space to
remove the cables.
E
F
6 Remove the cables attached to the back of the drives in the drive cage.
7 Remove the screw from each side of the drive cage to remove the 7-In-1
memory card reader.
Or
Remove the screw from each side of the drive cage to remove the diskette
drive.
8 Pull the drive out through the front of the drive cage.
