Software 4-13

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

CMC Properties Screen

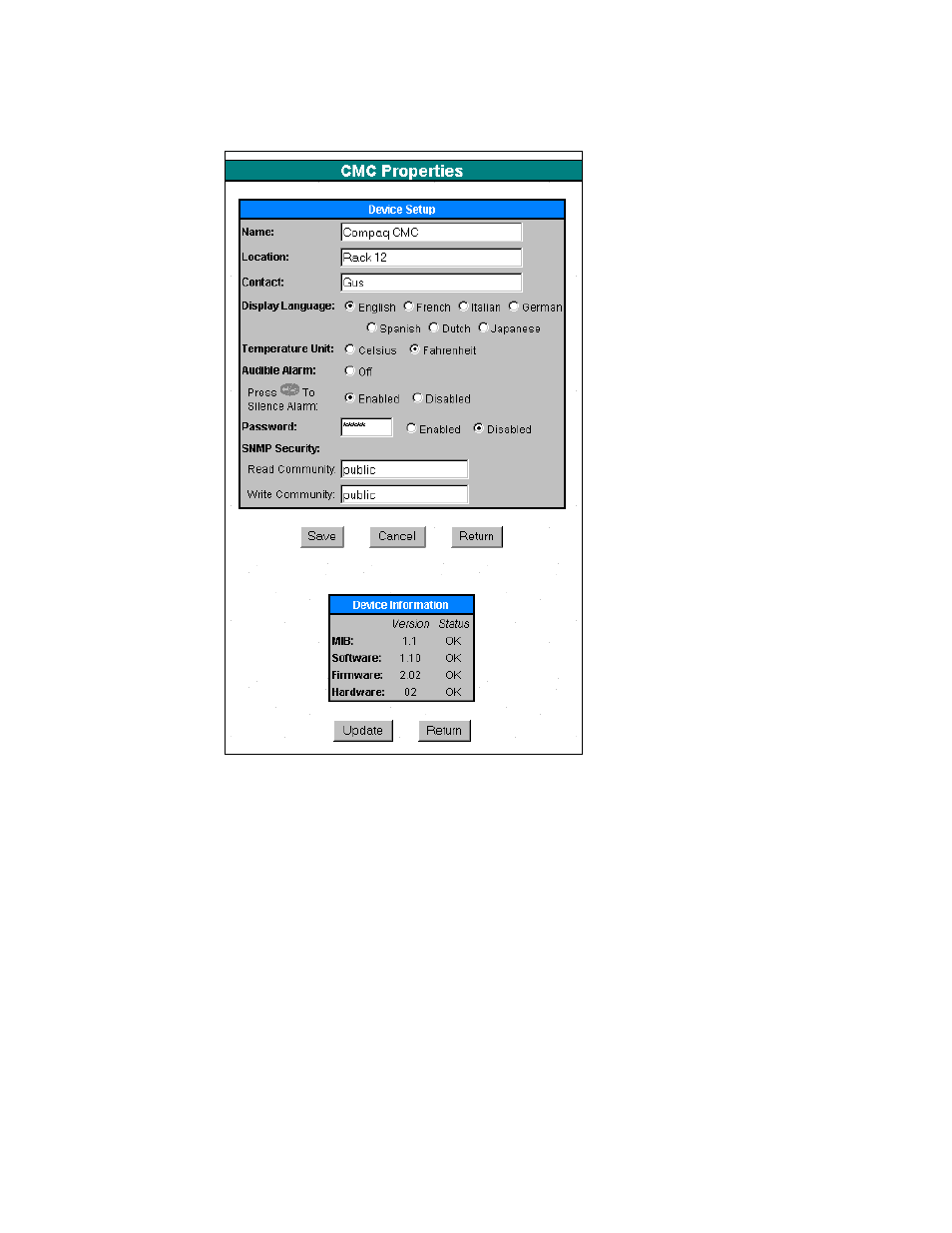

Figure 4-8. CMC Properties screen

Click the CMC Properties link to access the CMC Properties screen. Use
this screen to configure the CMC properties for each CMC recognized by the
Intelligent Rack Manager Lite software. The CMC hardware, software,
firmware, and MIB version levels are indicated in the Device Information
box. The availability of updated versions is indicated in the Status column.
