Humidity sensor
■ The optional humidity sensor should be installed as follows:
a. Install the bracket for the humidity sensor
to the rack using the
larger screws.
b. Fasten the sensor unit
to the bracket using the smaller screws.
c. Snap the cover
over the sensor unit.
d. Connect the sensor cable
to the sensor unit.
1
2
4
3

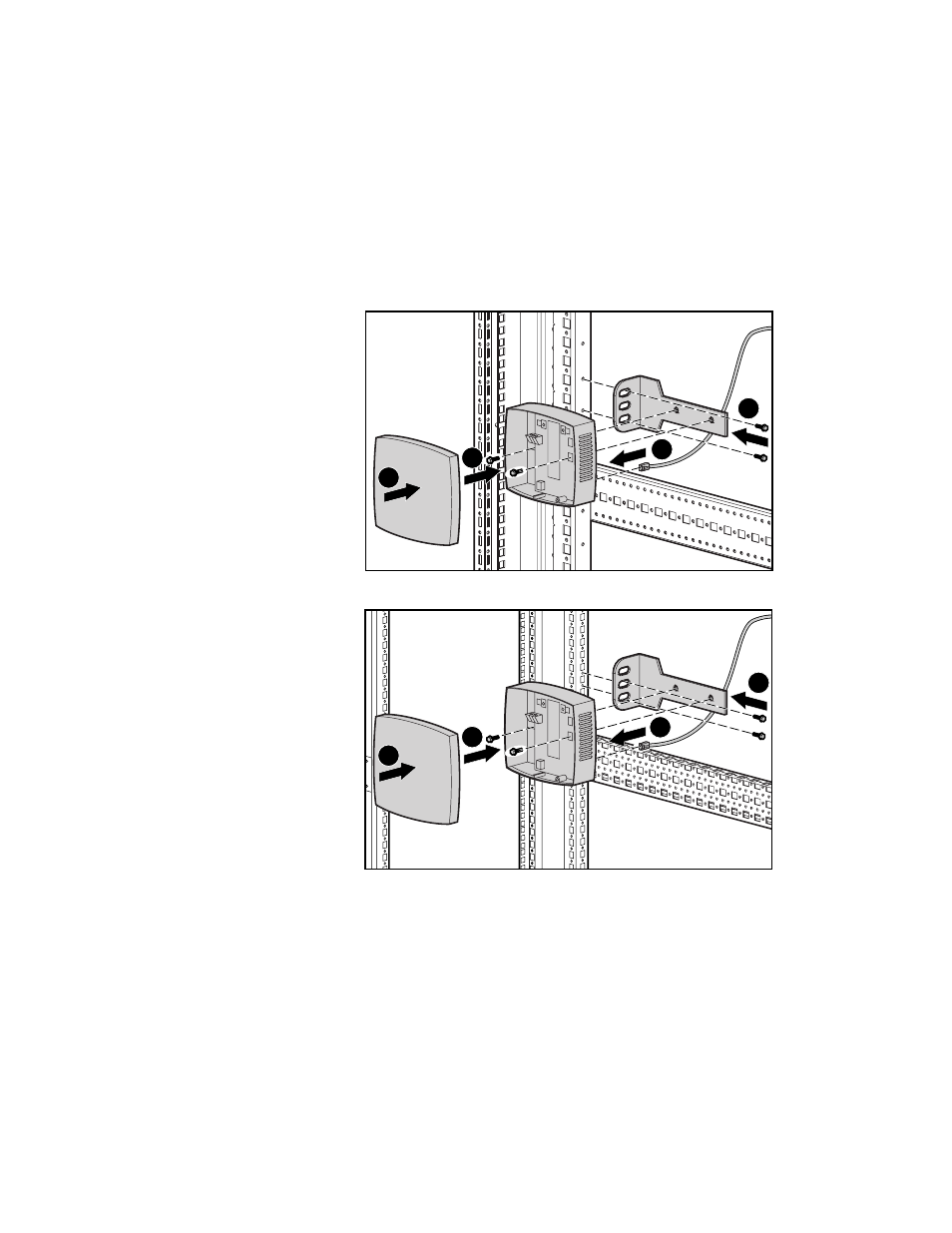

Figure 2-8. Installing the humidity sensor in the 9000 series rack
1
4
2
3
Figure 2-9. Installing the humidity sensor in the 7000 series rack
