Add/Remove Device Screen

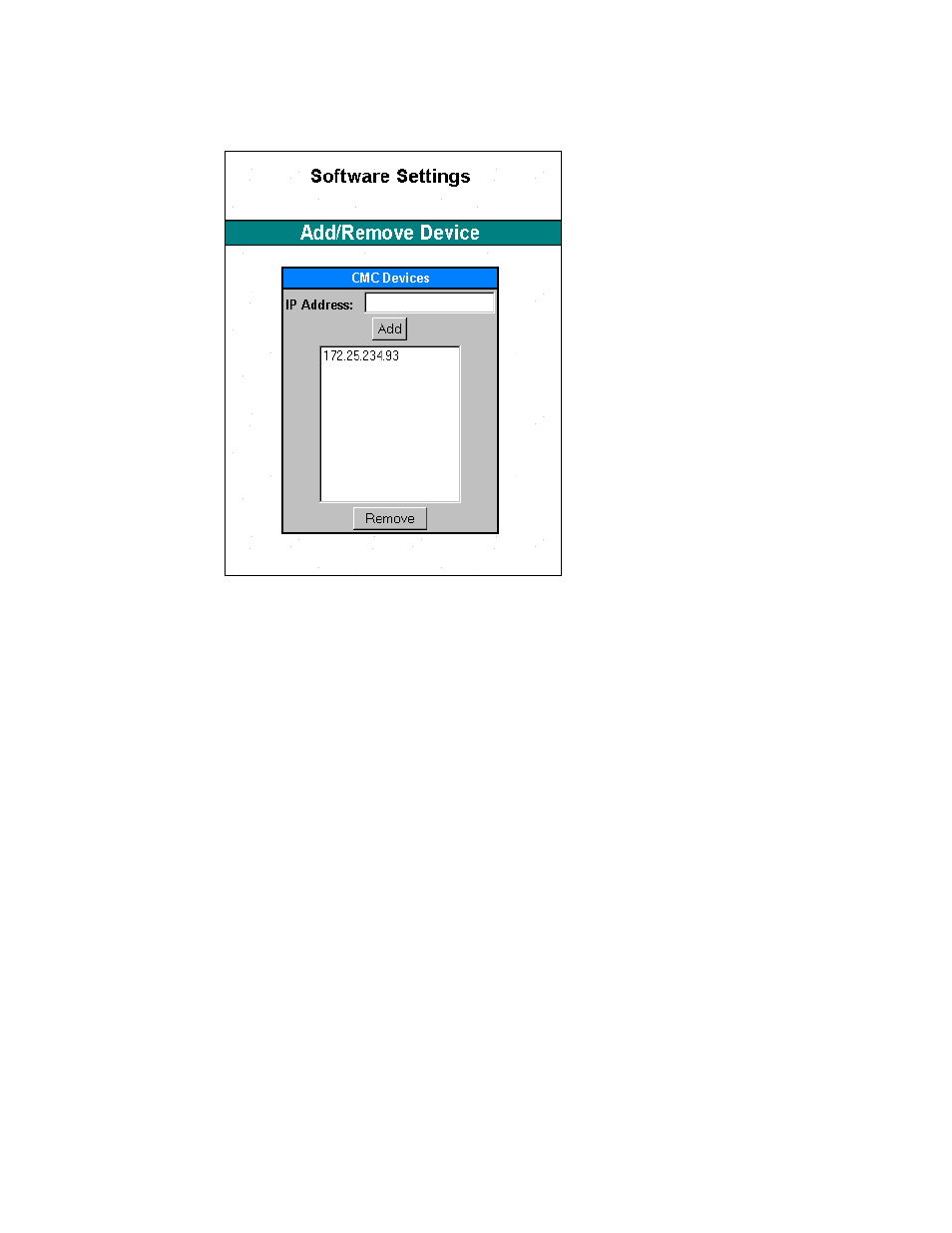

Figure 4-3. Add/Remove Device screen
Click the Add/Remove Device link to access the Add/Remove Device screen.
The Intelligent Rack Manager Lite software only recognizes CMC devices that
are listed on the Add/Remove Device screen.
To add a CMC to the software:
1. Type the IP address of the CMC in the IP Address field. See “Setting
the IP Address” in Chapter 2.
2. Click Add to add the CMC to the list of recognized devices.
NOTE: Type in a range of IP addresses to locate several CMC devices. The software only
recognizes ranges at the end of an IP address, for example 200.200.200.201-213.
To remove a CMC from the software:
1. Highlight the IP address of the CMC you want to remove.
2. Click Remove to remove the CMC from the list of recognized devices.
