Status Description Item
Green = System on
Amber = System shut down, but power still applied
Off = Power cord not attached or power supply failure
Power On/Standby
button/system power LED
15
15682
1 2 3 4 5 6 7
8
9 10 11 12 13 14 15 16 17 18 19 20
21 22

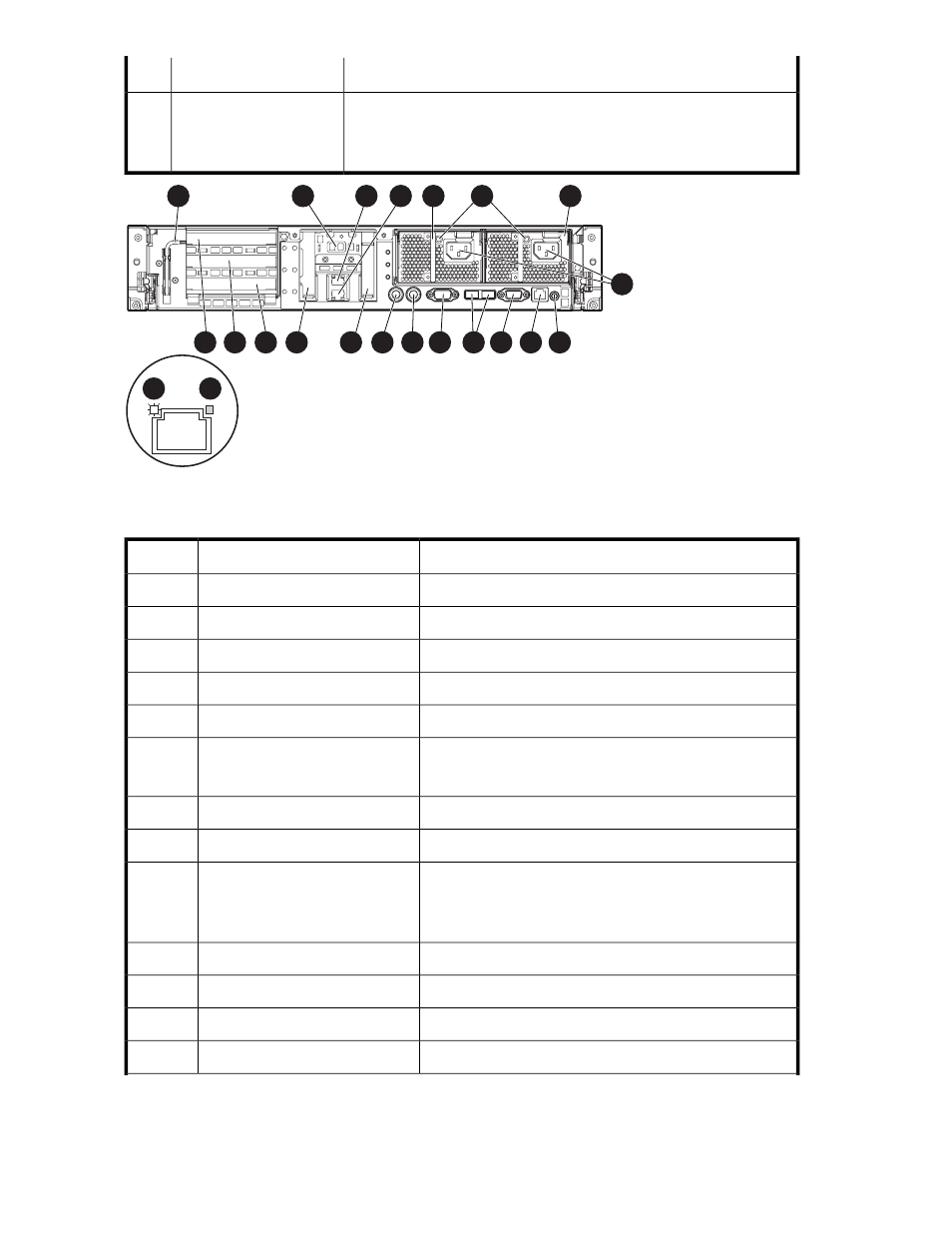

Figure 11 DL380 G5 rear panel
Table 14 DL380 G5 rear panel components
Status / Definition Description Item
N/A T-10/T-15 Torx screwdriver 1
N/A External option blank 2
N/A NIC 2 connector 3
N/A NIC 1 connector 4
N/A Power supply bay 2 5
Green = Normal
Off = System is off or power supply has failed
Power supply LED 6
N/A Power supply bay 1 7
N/A Power cord connectors (Black) 8
Blue = Activated
Flashing = System being remotely managed
Off = Deactivated
UID LED button 9
N/A iLO 2 connector 10
N/A Video connector (Blue) 11
N/A USB connectors (2) (Black) 12
N/A Serial connector 13
Server components 44
