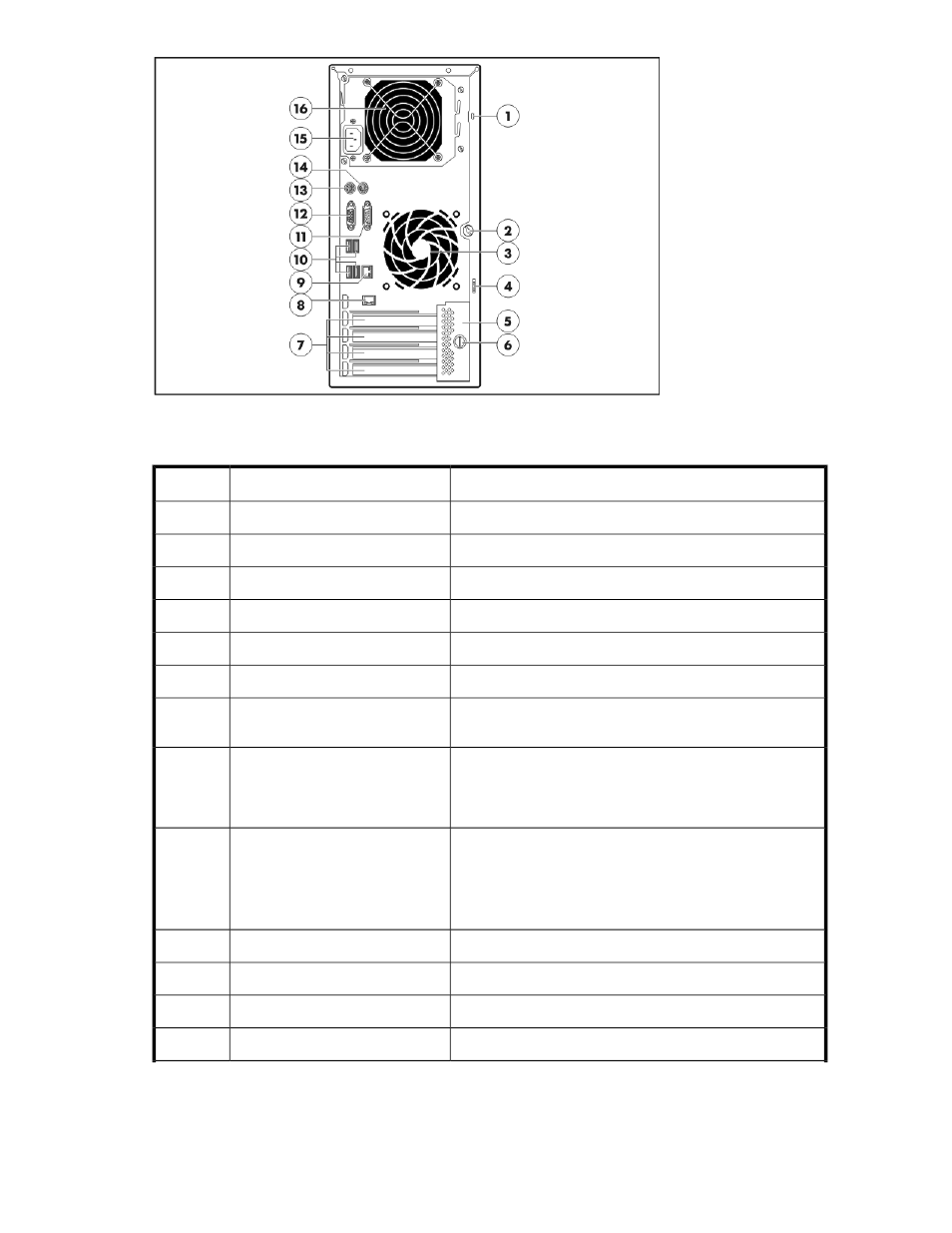

Figure 5 ML110 G5 rear panel
Table 8 ML110 G5 rear panel components
Status
Description
Item
N/A
Kensington lock notch
1
N/A
Access panel thumbscrew
2
N/A
System fan
3
N/A
Cable lock provision notch
4
N/A
PCI slot cover retainer
5
N/A
PCI slot cover retainer thumbscrew
6
One slot populated with HP Smart Array E200 controller
(excluding the 2HDD 320 GB SATA model)
PCI slot covers
7
Management NIC activity and link
Blinking green = Ongoing network activity
Green = Existing network link
Lights-Out remote management
port (optional)
8
Embedded NIC link and activity
Orange = 10/100 Mbps connection
Green = GbE link connection
Blinking yellow = Ongoing network activity
Embedded NIC port (RJ-45)
9
N/A
USB 2.0 ports
10
N/A
Serial port
11
N/A
Video port
12
N/A
PS/2 keyboard port
13
