Interpreting LED activity
You can monitor switch activity and status by checking the switch LEDs.
There are three possible LED states: no light, a steady light, or a flashing light. The steady lights and
flashing lights can be green or amber.
The LEDs flash any of these colors during boot, POST, or other diagnostic tests. This is normal and
does not indicate a problem unless the LEDs do not indicate a healthy state after all boot processes
and diagnostic tests are complete. A healthy state is indicated by a steady green light. See
for details about LED activity.
LED indicators
All the LEDs are located on the port side. See
Figure 8
Identifying LEDs
These LEDs are controlled by the OA and are used to indicate certain types of errors. The OA
interface should be used to display all errors. See the HP BladeSystem Onboard Administrator user
guide for information about the OA interface.
Table 11

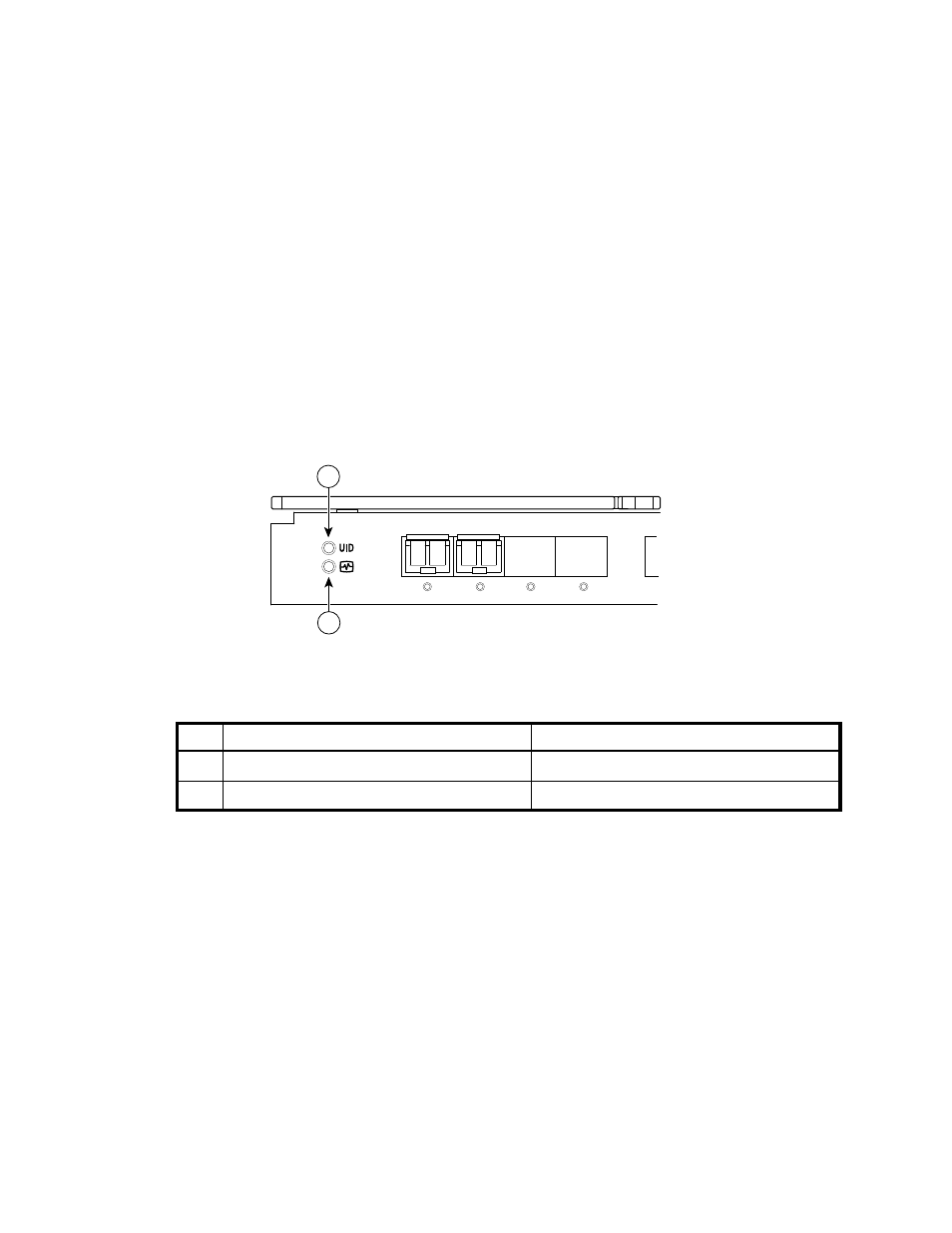

Front panel LED indicators during normal operation
Item
Description
LED Indicators
1
Unit ID (UID) LED
Steady green light
2
Health ID LED
Steady green light
!
EXT 1
EXT 2
EXT 3
EXT 4
1
2
181873
