Cisco MDS 9124e Fabric Switch for HP c-Class BladeSystem
31

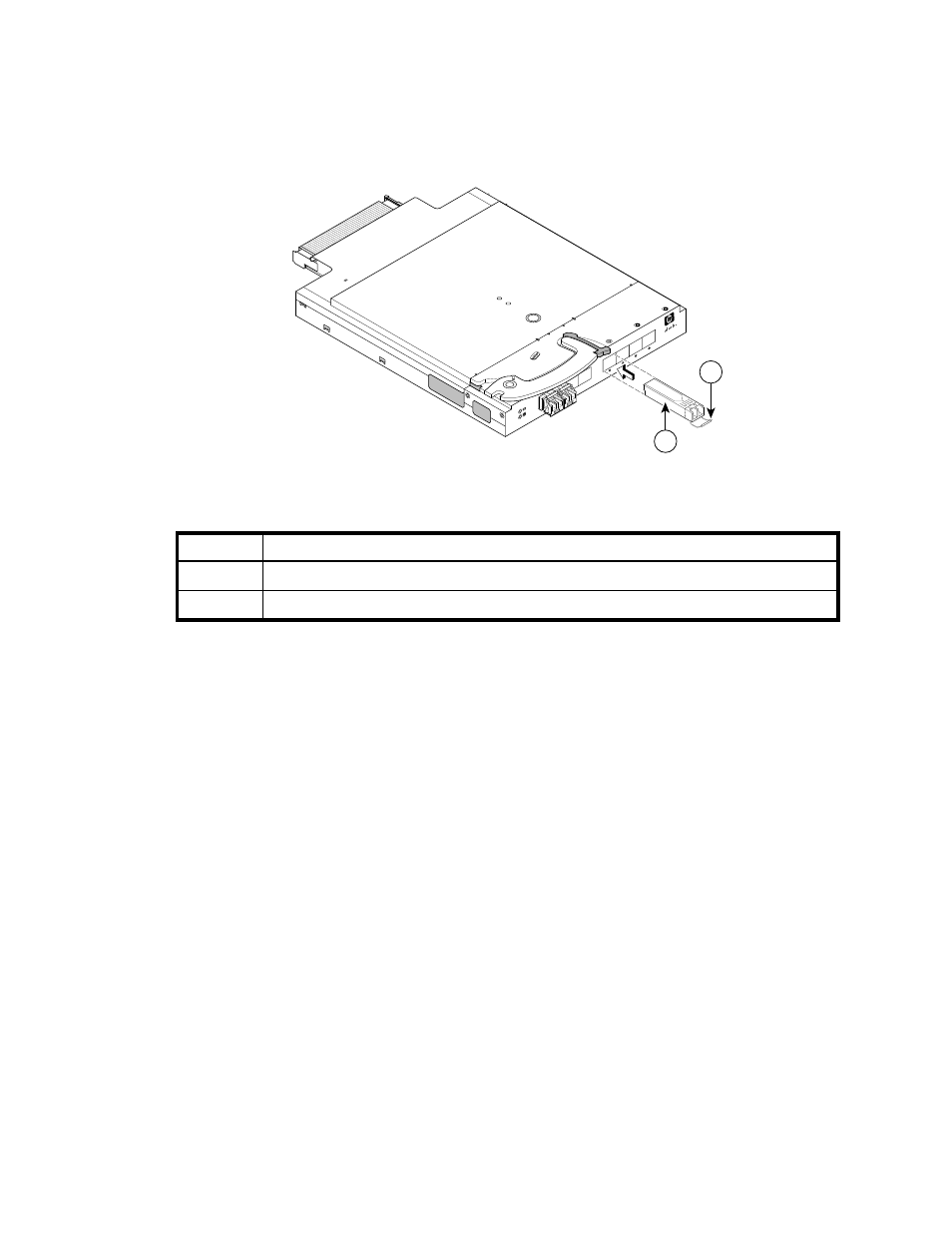

Figure 7
Installing an SFP
3.
Insert the SFP into the port until you hear a click.
4.
Close the bail.
Replacing the Switch
In some cases, you may need to replace a Cisco MDS 9124e Switch. To replace a Cisco MDS
9124e switch in the HP BladeSystem c-Class enclosure:
1.
Create a backup of the existing configuration file. As a best practice, regularly back up the
Cisco MDS 9124e Switch configuration to a remote server. Do this for each switch in the SAN
whenever you change the configuration. You can back up the configuration using either the
command-line interface (CLI) on the Cisco MDS 9124e Switch, Device Manager, or Fabric
Manager.
2.
Disconnect all external fibre channel cables from the Cisco MDS 9124e Switch.
3.
Remove the Cisco MDS 9124e Switch from the c-Class enclosure.
4.
Insert the new Cisco MDS 9124e Switch into the c-Class enclosure where the previous Cisco MDS
9124e Switch was removed.
5.
Log in to the CLI of the c-Class Onboard Administrator.
6.
Connect to the console of the Cisco MDS 9124e Switch by issuing the following command:
OA> connect interconnect x
Where x is the interconnect bay number where the switch is installed.
Table 10
SFP components
Item
Description
1
Bail
2
SFP
scale: 3/8" = 1"
17
18
19
20
Cis
co
M
DS
9
12
4e
1
2
EX
T 8
EX
T 7
EX
T 6
EX
T 5
CISCO
181867
