Sample Project-Tracking System
Determining the Format of the Screens
• If you want to display more than one record within a box,
consider using a tabular format.
Since a project can have more than one event, the
"project-info" application should display more than one
"events" record. A tabular format can display summary several
records attractively.
When you have selected a screen layout for each application, make
a detailed sketch of each proposed screen (see Figure 12-11) and
show the sketch to the people who will use it. Wherever
possible, incorporate any user suggestions into your screen
design.
S5044-064
Project Entry Screen
*** To assign employees to events, press F3 ***
* Manager Name * I.D. No.
Proj. Proj. Dates
Description Starting Ending Proj. Proj.
dy mo yr dy mo yr stat code
*Event Event Event Dates
No. Description Starting Ending
dy mo yr dy mo yr

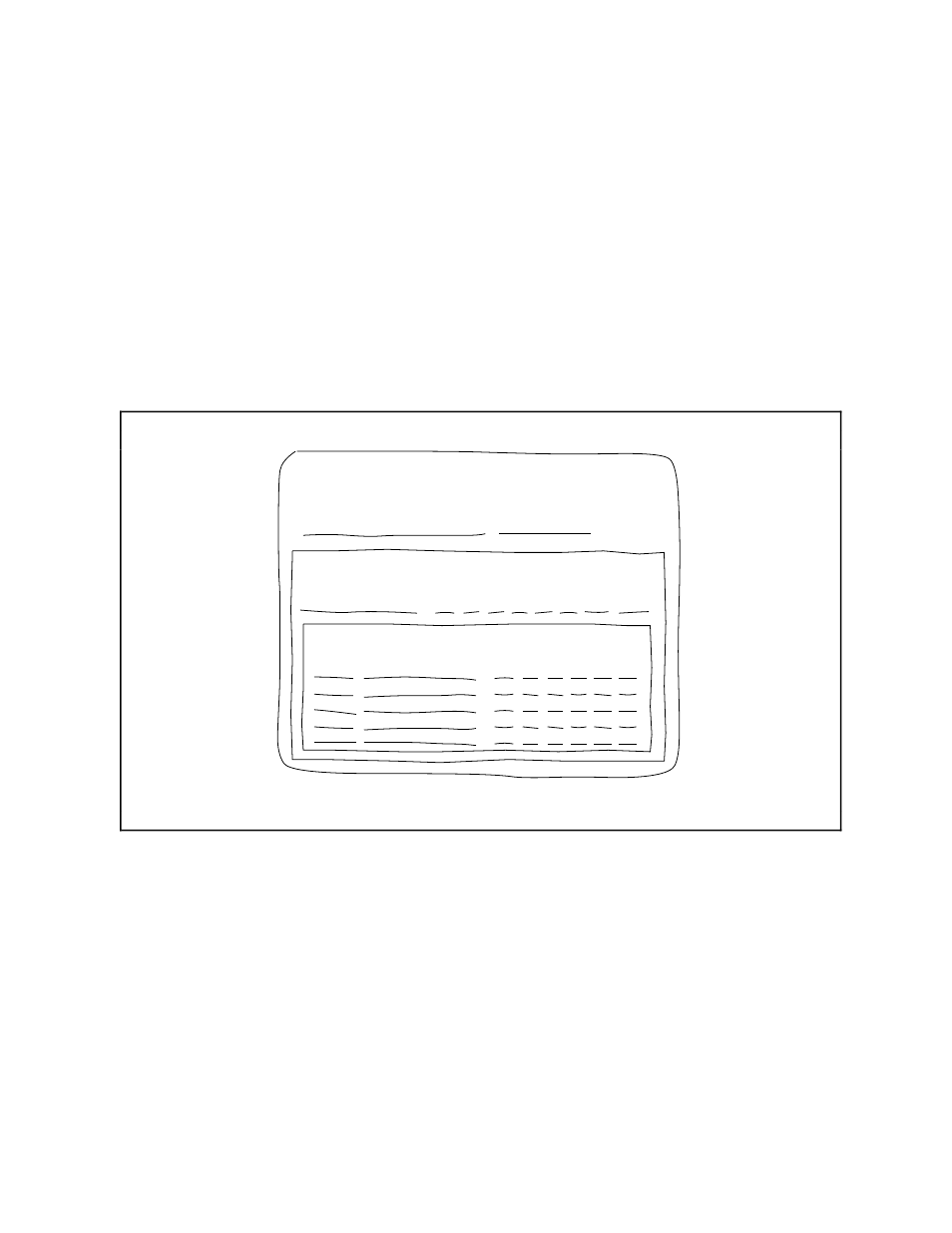

Figure 12-11. Detailed Sketch of the Proposed Project-Entry
Screen
