HP Z620 Workstation - Manual (Page 25)

HP Z820 Workstation rear panel

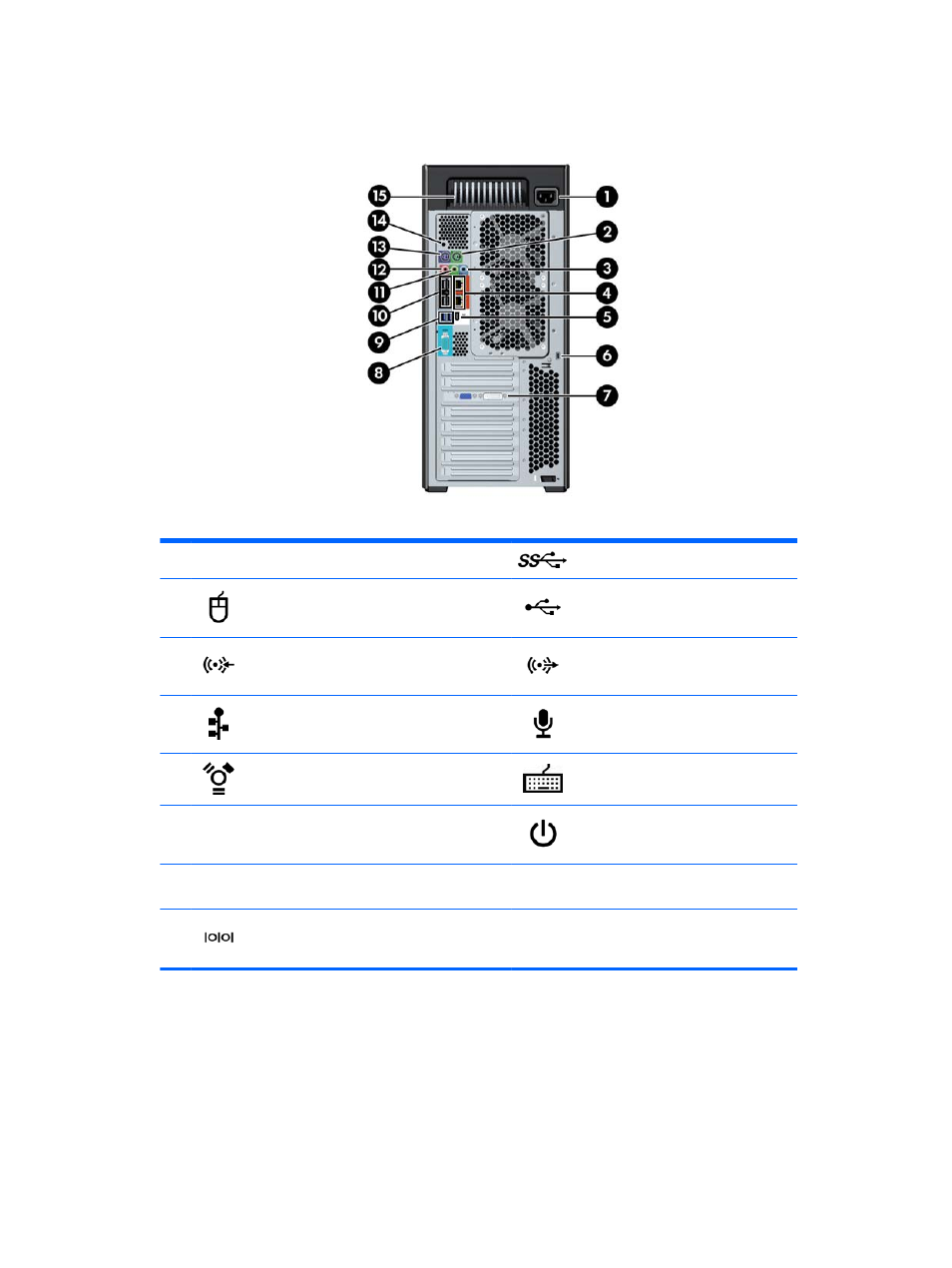

Figure 2-10 Rear panel components
Table 2-10 Component descriptions
1 Power cord connector 9 USB 3.0 ports (2, blue)
2 PS/2 mouse connector (green) 10 USB 2.0 ports (4, black)
3 Audio line-in connector (blue) 11 Audio line-out connector (green)
4
RJ-45 network connectors (2, orange)
Top connector is AMT enabled
12 Microphone connector (pink)
5
IEEE-1394a FireWire connector
(white)
13 PS/2 keyboard connector (purple)
6 Security slot 14 Rear power button
7 Graphics card connector(s) 15
Power supply Built-In Self Test
(BIST) LED
8 Serial connector (teal blue)
HP Z820 Workstation components 17
