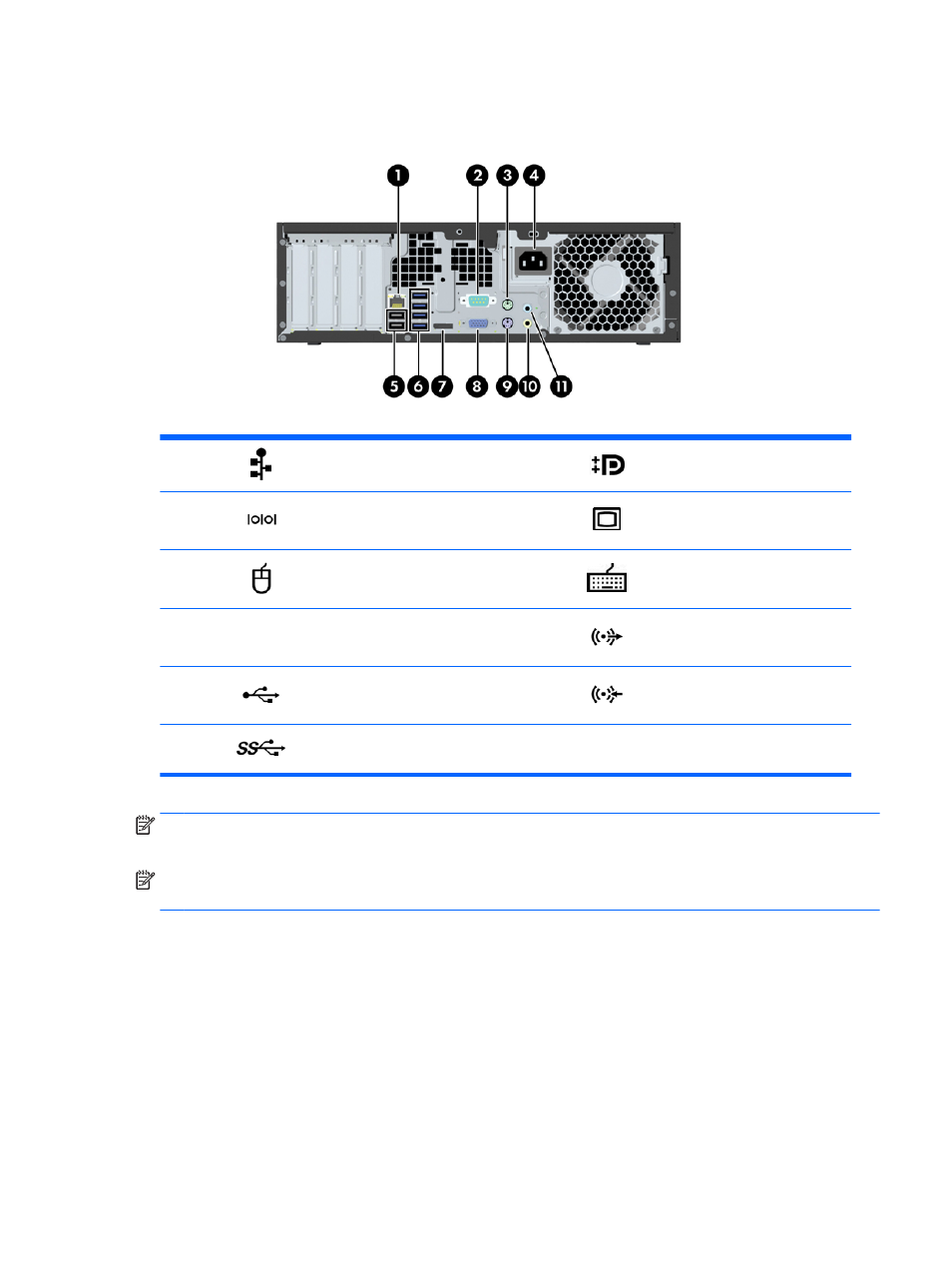

Z220 SFF Workstation rear panel

Figure 2-2

Rear panel components

Table 2-2

Component descriptions

1

RJ–45 network connector

7

DisplayPort (DP)

2

Serial port

8

VGA (monitor) (blue)

3

PS/2 mouse connector (green)

9

PS/2 keyboard connector

(purple)

4

Power cord connector

10

Audio line-out connector (green)

5

USB 2.0 ports (2) (back)

11

Audio line-in connector (blue)

6

USB 3.0 ports (4) (blue)

NOTE:

The labels for the rear panel connectors use

industry-standard icons and colors.

NOTE:

The DP and VGA ports are not supported when the system is configured with Intel® Xeon E3-12x0 v2 processors. Also, if a discrete graphics

card is installed, these ports are disabled by default.

NOTE:

Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled

using the Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.

HP Z220 SFF Workstation components

9
