Management
Page 4-10
Enabling/Disabling Ports
The enabling or disabling of a port is a manual operation that can be
used to isolate devices possibly causing problems on the network or to
prevent unauthorized use of a port or station.
To enable or disable a port:
1
Click Ports.
You do not need to select any particular port on the
front-panel image.
The Port Table appears, similar to Figure 4-8.

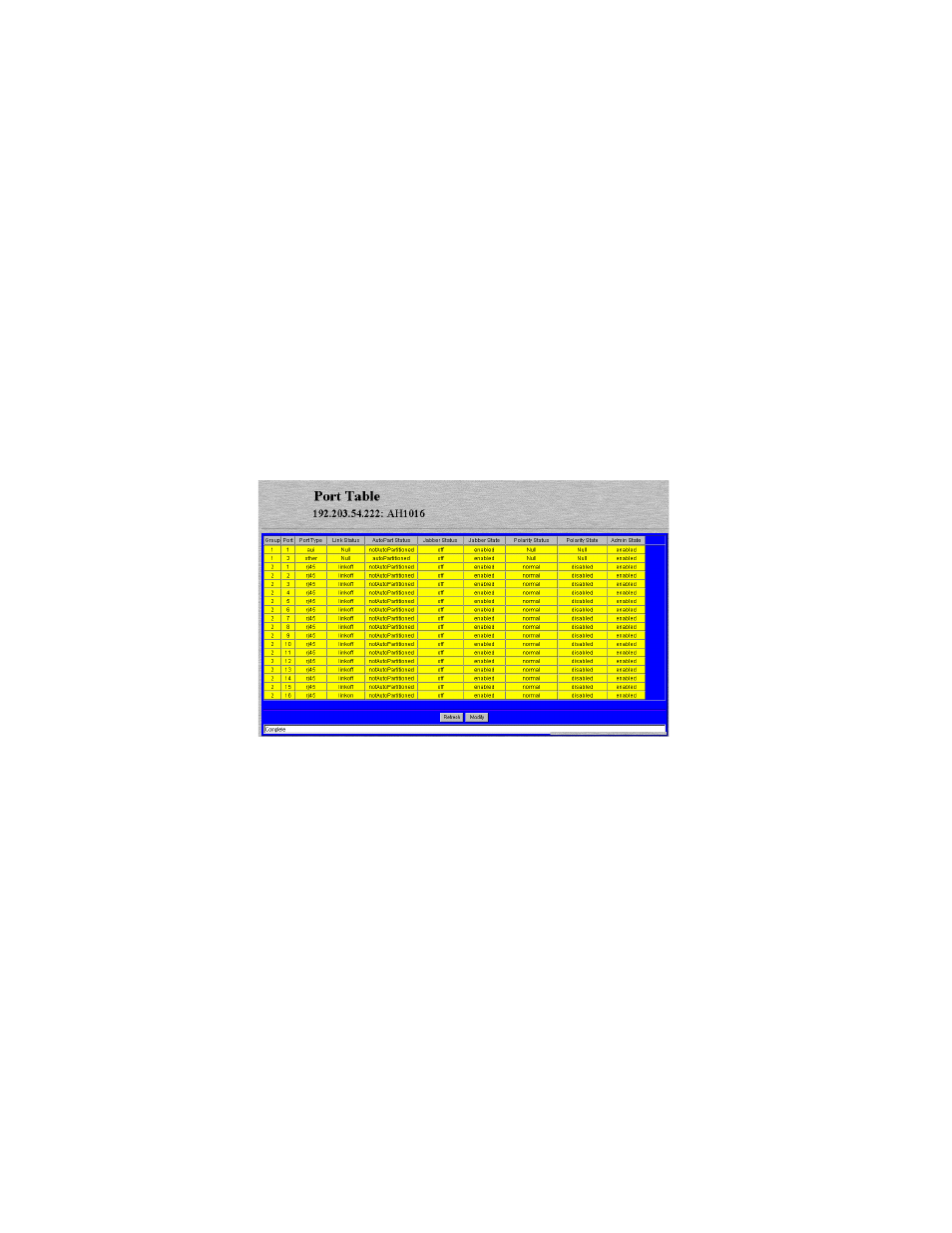

Figure 4-8 Port Table
The Port Table displays the current status of each port on
the device. The table contains a scroll bar that is inde-
pendent of the browser, which allows you to view infor-
mation on all ports on the device.
∆
Note: For a description of each field, see “Ports”
on page 5-6.
2
Select the port to be enabled or disabled by clicking
once on the port’s row.
∆
Note: The ports are identified by their group and
port number. For example, the AsantéHub 1016-
IQ’s 16 10Base-T ports are on group
2.
