Parameter Min Max Unit
Serial Ports
Timing Requirements:
t
SCK
SCLK Period 50 ns
t
SCS
DR/TFS/RFS Setup before SCLK Low 4 ns
t
SCH
DR/TFS/RFS Hold after SCLK Low 7 ns
t
SCP
SCLK
IN
Width 20 ns
Switching Characteristics:
t
CC
CLKOUT High to SCLK
OUT
0.25t
CK
0.25t
CK
+ 10 ns
t
SCDE
SCLK High to DT Enable 0 ns
t
SCDV
SCLK High to DT Valid 15 ns
t
RH
TFS/RFS
OUT
Hold after SCLK High 0 ns
t
RD
TFS/RFS
OUT
Delay from SCLK High 15 ns
t
SCDH
DT Hold after SCLK High 0 ns
t
TDE
TFS (Alt) to DT Enable 0 ns
t
TDV
TFS (Alt) to DT Valid 14 ns
t
SCDD
SCLK High to DT Disable 15 ns
t
RDV
RFS (Multichannel, Frame Delay Zero) to DT Valid 15 ns
CLKOUT
SCLK
TFS
RFS
DT
ALTERNATE
FRAME MODE
t
CC
t
CC
t
SCS
t
SCH
t
RH
t
SCDE
t
SCDH
t
SCDD
t
TDE
t
RDV
MULTICHANNEL MODE,
FRAME DELAY 0
(MFD = 0)
DR
TFS IN
RFS IN
RFS OUT
TFS OUT
t
TDV
t
SCDV
t
RD
t
SCP
t
SCK
t
SCP

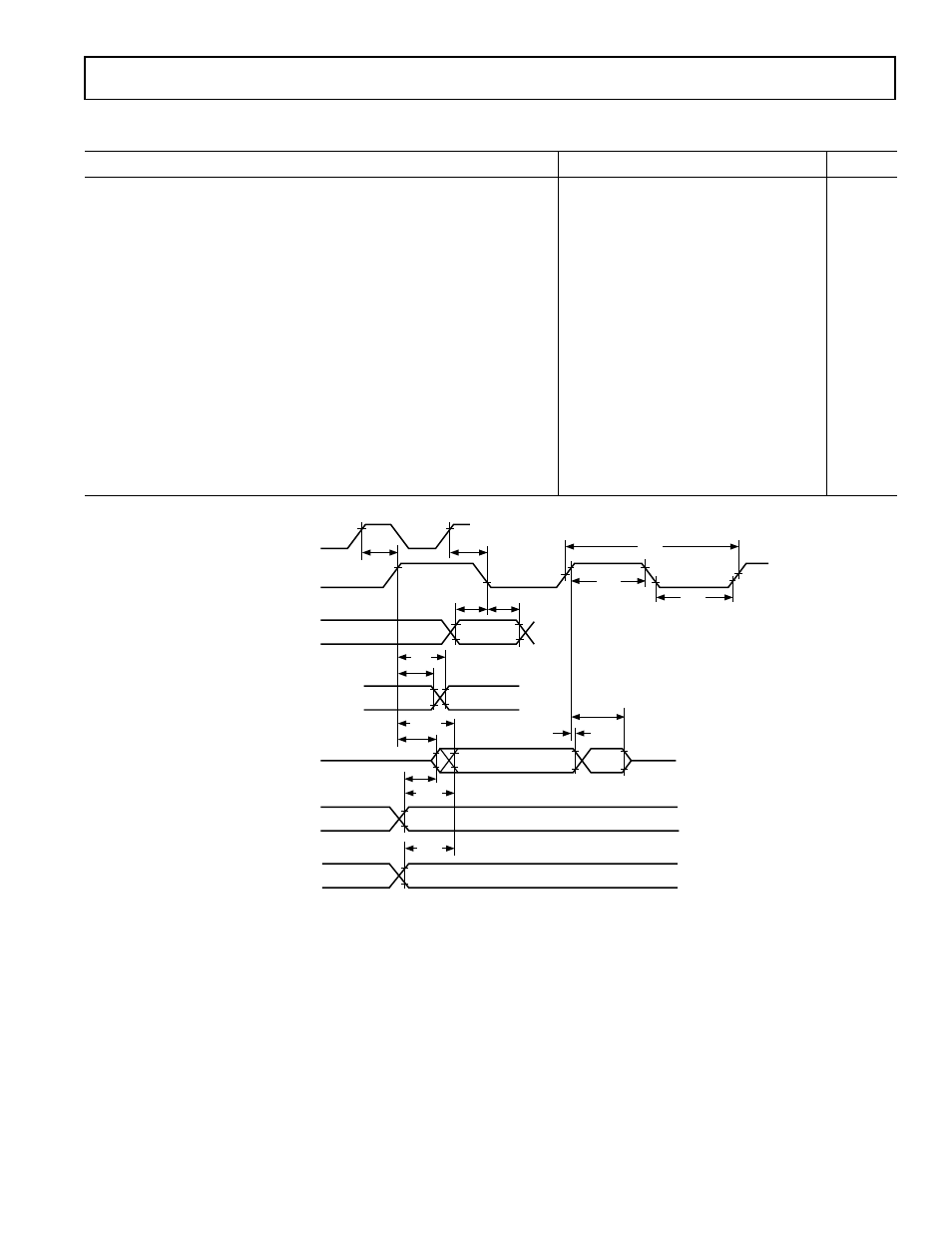

Figure 27. Serial Ports
