Page 52

50

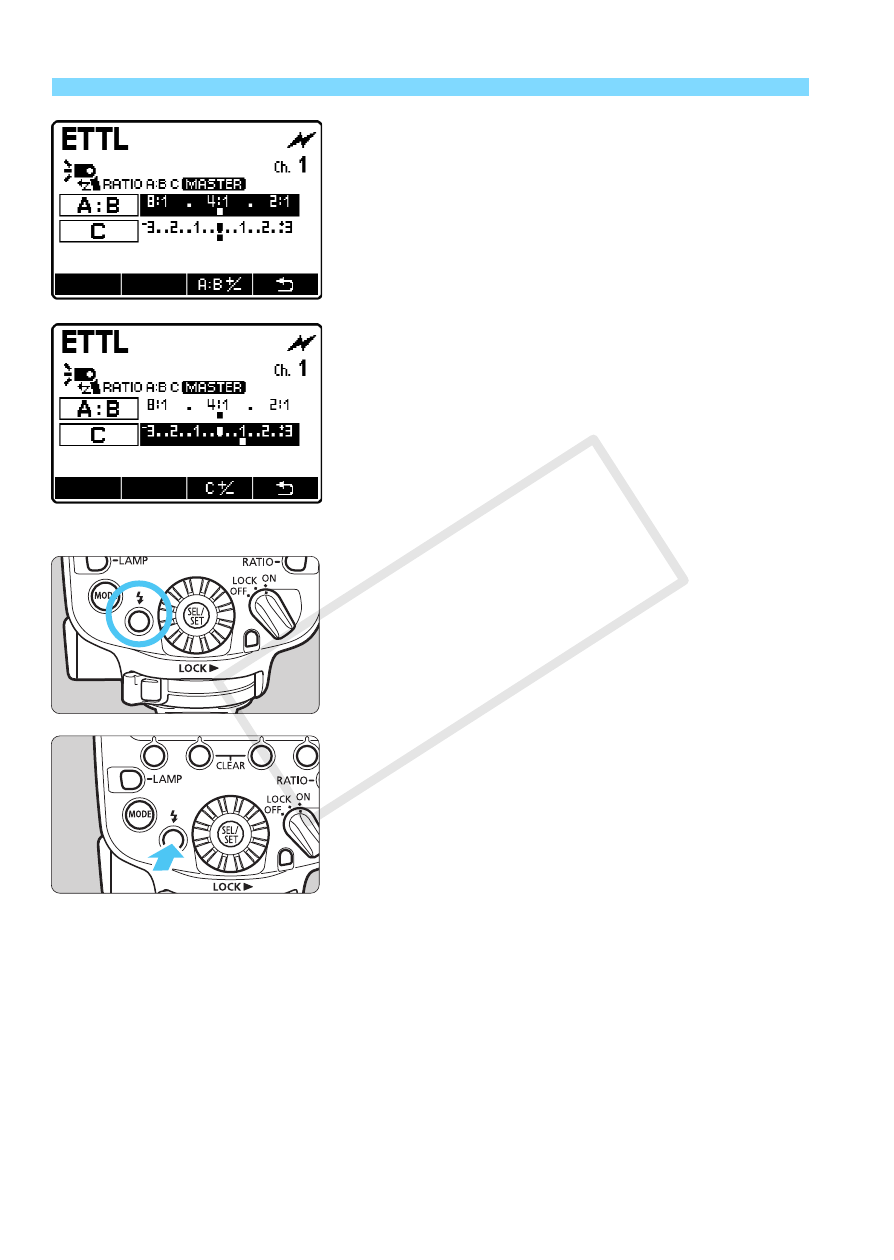

a: Multiple Flash Shooting with Slave C Added
5
Set the A:B flash ratio.
Press function button 3 <
F>,
turn <
9>, select
press <
8>.
Turn <
9> to set the A:B flash ratio,
then press <
8>.
6
Set the flash exposure
compensation amount for slave C.
Turn <
9>, select <6>, then
press <
8>.
Turn <
9> to set the flash exposure
compensation amount, then press
<
8>.
7
Check that the flash is ready.
Check that the flash-ready lamp of
the master unit is lit.
Check that the slave unit is fully
charged.
8
Check the operation.
Press the master unit’s test flash
button.
X
Slave C fires a flash. If it does not fire,
check that it is placed within the
operation range.
9
Take the picture.
Set the camera and take the picture,
in the same way as with normal flash
shooting.
X
If a standard flash exposure was
obtained, the flash exposure
confirmation lamp lights for 3 sec.
