Brother MFC-7820N User Manual
Page 97
Troubleshooting and routine maintenance
11 - 10
11

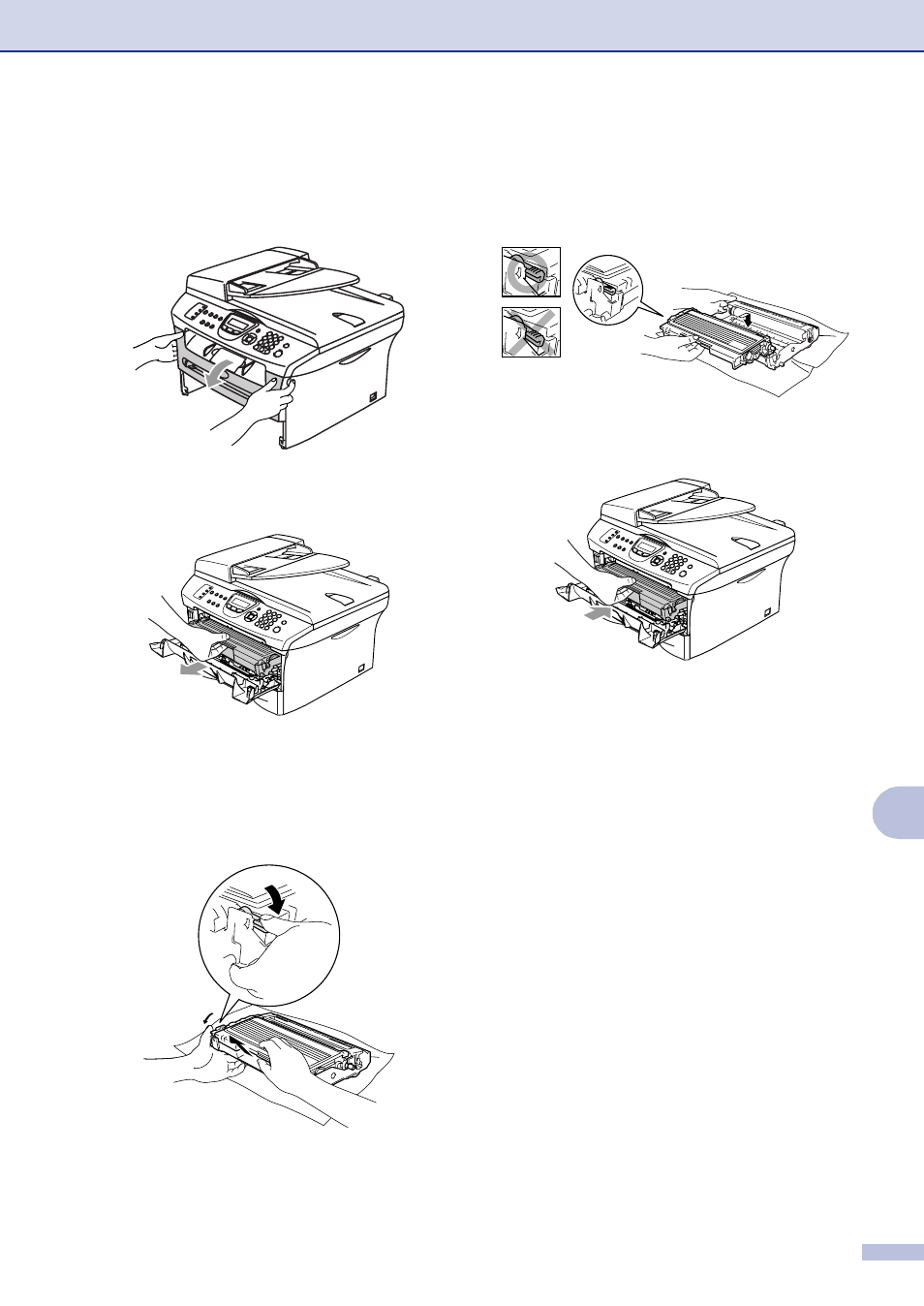

Paper is jammed inside the drum unit
and toner cartridge assembly
1
Open the front cover.
2
Pull out the drum unit and toner
cartridge assembly.
3
Hold down the lock lever on the left and
pull the toner cartridge out of the drum
unit.
Take out the jammed paper if there is
any inside the drum unit.
4
Put the toner cartridge back into the
drum unit until you hear it lock into place.
If you put it in properly, the lock lever will
lift automatically.
5
Put the drum unit and toner cartridge
assembly back into the MFC.
6
Close the front cover.
