Brother PT-9500PC - Manual (Page 273)

38
9

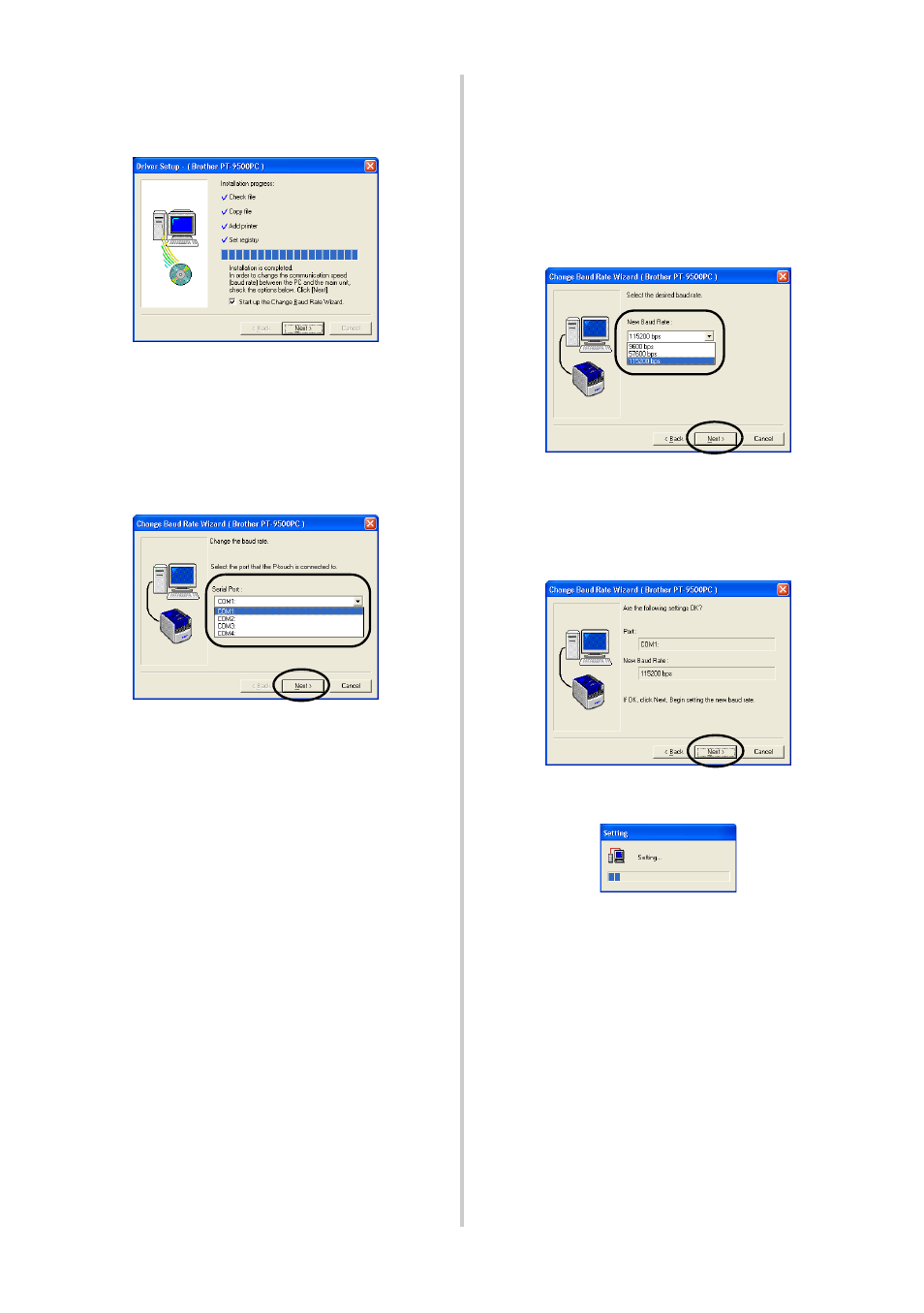

Select the “Start up the Change Baud
Rate Wizard” check box, and then click
[Next].
→The Change Baud Rate Wizard
(Brother PT-9500PC) dialog box
appears.
0
Select the appropriate Serial Port, and
then click [Next].
→A dialog box to select the desired
baud rate appears.
a
Select the desired baud rate, and then
click [Next].
Select 115,200 bps for the serial port
baud rate using a personal computer that
supports a baud rate of 115,200 bps. If the
personal computer does not support a
serial port baud rate of 115,200 bps,
select the appropriate baud rate.
→A dialog box to confirm the baud
rate settings appears.
b
Click [Next].
→The baud rate will be set.
• When the baud rate settings are
complete, the PT-9500PC and personal
computer can communicate using the
serial port.
→The dialog box to indicate
installation is complete appears.
c
Remove the CD-ROM from the CD-ROM
drive.
