28
Programming sequence
Note: Button pauses greater than 1 minute during programming will result
in automatic return to the operating mode.

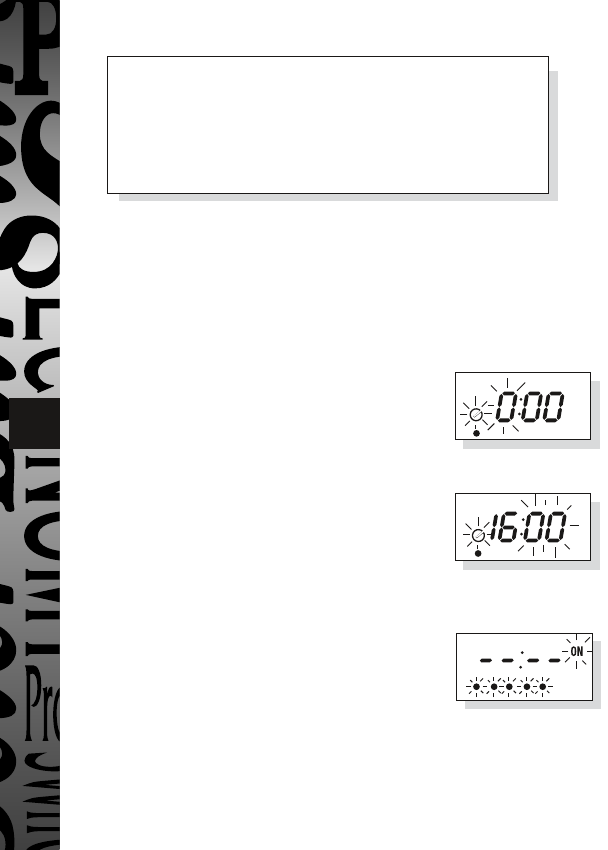

2 Setting Clock (after reset)
i Day Setting – Press button to advance to the day required.
Day 1 = Monday and Day 7 = Sunday.
ii Hour Setting – Press the
button once to select the hour –
display shows clock symbol and
the hrs digit flashing.
Press the button to advance
the hour setting. Note: For rapid hour selections
press and hold down button.
iii Minute Setting – Press the button once to
select the minutes – display shows with clock symbol
and minute digits flashing. Press the
button to advance the minutes setting. Note: For rapid
minute selection press and hold down
button. (Note: 16 hrs shown as example of hrs set)
iv Press button once
clock is now set and
display shows ready for the first ON programme time.
3. To Set Programme ON/OFF Times (after clock setting)
Programme 1 ON time
i Press button to advance the day flag to the required day(s)
settings which are:
Setting clock
Programme 1 ON
Programme 1 OFF
Programme 2 ON
Programme 2 OFF
Programme 3 ON
Programme 3 OFF
Programme 4 ON
Programme 4 OFF
Programme 5 ON
Programme 5 OFF
Programme 6 ON
Programme 6 OFF
Operating Mode
......
....➔
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
. . .
. . .
. . .
. . .
. . .
. . .
