21
Slide switch provides
continuous ON,
continuous OFF or
normal programme
operation
Override button
(also used in
conjunction with the
programme button to
programme clock and
times/days for ON
periods

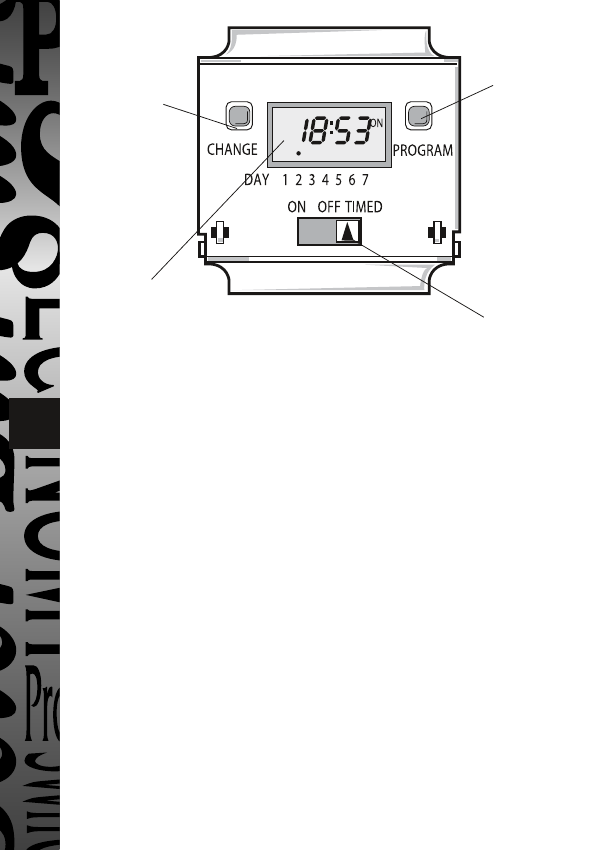

Figure 1
24 hour clock
display
Programme button
used to programme
clock and times/days
for ON periods
Contents
1 EL11 (24 hour) or EL17 (7 day)
1 Panel mount bezel
1 Tamper proof cover
4 Surface mount stand offs (length 10mm)
2 Panel mount bolts
2 Self-tapping screws (No. 4 x 5/8 in) for panel mount bolts
2 Self-tapping screws (No. 6 x 3/8 in) for attaching bezel to EL11/17
General
The EL11 (24 hour) or EL17 (7 day) is primarily a panel mounted timeswitch
rated at 240V, 16A resistive at T40. It can also be surface mounted within
cubicles if required.
The contacts are single pole change over and are fully voltage free. The front
of the unit is shown in figure 1. The rear of the unit showing wiring
connections and the internal circuit is shown in figure 2.
Connections are made to the EL11/17 by 1/4 in receptacles. The unit can
be made tamper proof by wiring the cover supplied in place which still
leaves the display visible.
