24

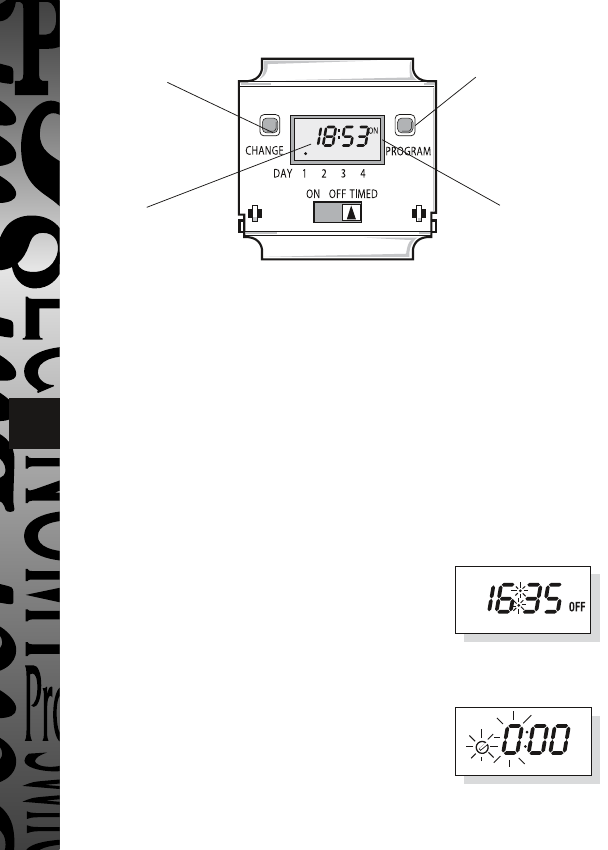

Easy view 24
hour digital
clock/timer
display
Change Button
sets Hours and
Minute times and
self cancelling
override
Programme Button
used to select the
clock time and the 4
ON/OFF
programme times
and to review them
once set
Output Status
showing unit
either ON or OFF
Battery
This product has a factory fitted rechargeable battery. If the time controller is left with
its mains power switched off for more than 1 month the display may go blank. In this
case switch mains on, wait 30 minutes, and apply reset – see 1 before programming.
Programming
Only two setting buttons are provided and . During the
programme mode the button is used to set the hour and minute times.
Holding this button down achieves rapid selection of the hr and minute times.
It is also used for changing the output status during normal operation.
The button is used to select the clock time and 4 ON/OFF programmes
and to review them once set. Holding this button down achieves rapid selection of
the next programmes or can be used as a quick exit from programme mode or
programme review.
Normal Operating Mode
In normal operation the PanelMaster will display the
correct time with the colon flashing. The output
status will be shown by either ON or OFF on the display.
1 To Reset Display
To clear programmes from memory and reset the time controller press
and hold down both buttons until the display goes blank.
Release buttons and display will fill with its complete
range of characters and then clear to show clock and
hour digit flashing.
You are now in the clock setting mode
at the beginning of the programme sequence
EL11 Programming Instructions
1 2 3 4
1 2 3 4
